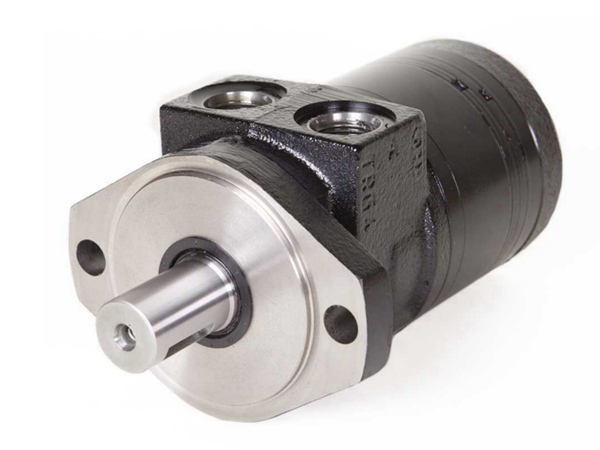

Parker Gerotor Motors TE, TB, TF, TK Series

Parker Gerotor Motors, Parker TE, Parker TB, Parker TF, Parker TK
Parker Gerotor Motors TE, TB, TF, TK Series
Parker Gerotor Motors TE, TB, TF, TK Series
Parker Gerotor Motors TE, TB, TF, TK Series
Parker Gerotor Motors TE, TB, TF, TK Series

Description

Reviews

Parker Gerotor Motors Description

Parker’s full line of high and low speed motors provide power ranging up to 15,000 inch-pounds of torque with speeds ranging from 1/2 rpm to 13,000 rpm. A complete range of sizes is offered in gear, gerotor, vane and piston style operating configurations. Fixed and variable displacement motors are available. Parker hydraulic motors deliver excellent performance with high efficiency, true wear compensation and longer service life.

Parker Gerotor Motors include: Parker Light Duty Motor - Torqmotor™ TB Series, Torqmotor™ TJ Series, Torqmotor™ TC Series, Torqmotor™ TS Series, Torqmotor™ TE Series; Parker Medium Duty Motor - Torqmotor™ TF Series, Torqmotor™ TG Series, Torqmotor™ TH Series, Torqmotor™ TL Series; Parker Heavy Duty Motor - Torqmotor™ TK Series, Torqmotor™ TGK Series, Torqmotor™ TK Series and others.

They are rugged Low Speed High Torque (LSHT) orbital motors featuring robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Dependability is based on high quality design and manufacturing. Designed and manufactured in Greeneville, TN USA. Its innovative design eliminates the need for a case drain.



Parker Light Duty Motor - Torqmotor™ TE Series

The only motor in its class with roller bearings, the TE Series can handle side loads of 1500 lb and withstand the pounding delivered by chain and sprocket couplings. Torqmotor™ TE Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal, and smooth low speed operation. Ideal for light duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. With its 1 inch nominal shaft size and roller bearings, the TE Series can carry max dynamic side loads to 1500 lb. at the key, intermittent pressures to 2750 psi, and torques to 5700 lb-in.



Parker Light Duty Motor - Torqmotor™ TB Series

The TB Series is a durable light duty hydraulic motor with up to 1-inch shaft. It can carry side loads up to 1100 pounds with intermittent pressures to 2400 psi and torques to 4700 lb-in. Its superior side load capacity, high pressure shaft seal, and smooth extra low speed operation make it ideal for light duty applications such as conveyors, gear boxes, winches and boom rotate. With DU and sintered copper/steel bushings and 1-inch nominal shaft size, the TB Series can carry dynamic side loads to 1100 lb. at the key, intermittent pressures to 2400 psi, torques to 4700 lb-in.



Parker Medium Duty Motor - Torqmotor™ TF Series

Available in flange or wheel mounts, the TF Series motor has intermittent pressure ratings to 4,000 psi, torques to 8,100 lb-in. Side load capability is 4,000 lb. on flange mounts, 6,000 lb. on wheel mounts. Shaft size 1.25 inch nominal. Torqmotor™ TF Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal, and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. The TF Series with a 1.25 inch nominal shaft size can handle intermittent pressures to 4,000 psi, and torques to 8,100 lb-in.



Parker Heavy Duty Motor - Torqmotor™ TK Series

The largest Torqmotor, the TK Series is available in flange and wheel mounts. Torques to 23,500 lb-in, intermittent pressures to 4500 psi. Side loads to 7500 lb. on flange mounts, 9,400 lb. on wheel mounts. Shaft size 1.5-inch nominal. Torqmotor™ TK Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for heavy duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4,500 psi. with high flow capability to 60 gpm. Max dynamic side load capability is 7500 lb. on wheel mounts at the key.



HEASH TECH is your nice partner in the hydraulic field for Parker motors, pumps and valves. We provide Parker Gerotor Motors as TE series, TB series, TF series, TK series in competitive price.

Visit us, more choices in sources for hydraulic components as Rexroth, MOOG, Parker, EATON Vickers, HAWE, Schneider KREUZNACH, Brevini, Denison, Sunfab, Linde etc.



Parker Gerotor Motors Technical Data



Parker Light Duty Motor - Torqmotor™ TE Series Performance Characteristics

Motor Displacement (Cu In/Rev): 2.2 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 11.9 | 13.9 | 15.9 | 17.9 | 20.0 | 22.6 | 24.0

Motor Displacement (Cc/Rev): 36 | 41 | 49 | 65 | 82 | 98 | 130 | 163 | 195 | 228 | 260 | 293 | 328 | 370 | 392

Maximum Flow (Lpm): 42 To 75 Intermittent (34 To 57 Continuous)

Maximum Flow (Gpm): 11 To 20 Intermittent (9 To 15 Continuous)

Minimum Starting Torque (Lb-In): 460 To 4090 Intermittent (389 To 3080 Continuous)

Maximum Output Torque (Lb-In): 630 To 5562 Intermittent (483 To 3935 Continuous)

Maximum Speed (Rpm): 191 To 1141 At Intermittent Flow

Brand: Torqmotor/PARKER

Maximum Pressure Differential (Bar): 120 To 190 Intermittent (85 To 140 Continuous)

Maximum Output Torque (Nm): 71 To 628 Intermittent (55 To 445 Continuous)

Minimum Starting Torque (Nm): 52 To 462 Intermittent (44 To 348 Continuous)

Shaft Diameter (Inch): 1.00 Nominal (Other Sizes Available)

Maximum Pressure Differential (Psi): 1740 To 2750 Intermittent (1250 To 2000 Continuous)



Parker Light Duty Motor - Torqmotor™ TB Series Performance Characteristics

Brand: Torqmotor/PARKER

Motor Displacement (Cc/Rev): 36 | 41 | 49 | 65 | 82 | 98 | 130 | 163 | 195 | 228 | 260 | 293 | 328 | 370 | 392

Motor Displacement (Cu In/Rev): 2.2 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 11.9 | 13.9 | 15.9 | 17.9 | 20.0 | 22.6 | 24.0

Maximum Pressure Differential (Bar): 100 To 165 Intermittent (83 To 125 Continuous)

Maximum Pressure Differential (Psi): 1450 To 2400 Intermittent (1200 To 1800 Continuous)

Maximum Flow (Lpm): 34 To 57 Intermittent (34 To 45 Continuous)

Maximum Flow (Gpm): 9 To 15 Intermittent (9 To 12 Continuous)

Maximum Output Torque (Nm): 67 To 540 Intermittent (48 To 440 Continuous)

Maximum Output Torque (Lb-In): 596 To 4783 Intermittent (427 To 3897 Continuous)

Minimum Starting Torque (Nm): 50 To 434 Intermittent (44 To 339 Continuous)

Minimum Starting Torque (Lb-In): 440 To 3845 Intermittent (385 To 3000 Continuous)

Maximum Speed (Rpm): 143 To 932 At Intermittent Flow

Shaft Diameter (Inch): 1.00 Nominal (Other Sizes Available)



Parker Medium Duty Motor - Torqmotor™ TF Series Performance Characteristics

Brand: Torqmotor/PARKER

Motor Displacement (Cc/Rev): 81 | 100 | 128 | 141 | 169 | 197 | 238 | 280 | 364 | 405 | 477

Motor Displacement (Cu In/Rev): 4.9 | 6.1 | 7.8 | 8.6 | 10.3 | 12.0 | 14.5 | 17.1 | 22.2 | 24.7 | 29.1

Maximum Pressure Differential (Bar): 136 To 276 Intermittent (113 To 207 Continuous)

Maximum Pressure Differential (Psi): 2000 To 4000 Intermittent (1645 To 3000 Continuous)

Maximum Flow (Lpm): 57 To 95 Intermittent (46 To 76 Continuous)

Maximum Flow (Gpm): 15 To 25 Intermittent (12 - 20 Continuous)

Maximum Output Torque (Nm): 296 To 851 Intermittent (220 To 681 Continuous)

Maximum Output Torque (Lb-In): 2621 To 7528 Intermittent (1948 To 6027 Continuous)

Minimum Starting Torque (Nm): 205 To 740 Intermittent (158 To 603 Continuous)

Minimum Starting Torque (Lb-In): 1811 To 6548 Intermittent (1401 To 5334 Continuous)

Maximum Speed (Rpm): 195 To 749 At Intermittent Flow

Shaft Diameter (Inch): 1.25 Nominal (Other Sizes Available)



Parker Heavy Duty Motor - Torqmotor™ TK Series Performance Characteristics

Brand: Torqmotor/PARKER

Motor Displacement (Cc/Rev): 250 | 315 | 400 | 500 | 630 | 800 | 1000

Motor Displacement (Cu In/Rev): 15.3 | 19.2 | 24.4 | 30.5 | 38.4 | 48.8 | 61.0

Maximum Pressure Differential (Bar): 190 To 310 Intermittent (172 To 241 Continuous)

Maximum Pressure Differential (Psi): 2750 To 4500 Intermittent (2500 To 3500 Continuous)

Maximum Flow (Lpm): 133 To 227 Intermittent (114 - 151 Continuous)

Maximum Flow (Gpm): 35 To 60 Intermittent (30 - 40 Continuous)

Maximum Output Torque (Nm): 1043 To 2660 Intermittent (814 To 2413 Continuous)

Maximum Output Torque (Lb-In): 9234 To 23,540 Intermittent (7204 To 21,360 Continuous)

Minimum Starting Torque (Nm): 879 To 2180 Intermittent (689 To 1981 Continuous)

Minimum Starting Torque (Lb-In): 7780 To 19,290 Intermittent (6100 To 17,535 Continuous)

Maximum Speed (Rpm): 218 To 523 At Intermittent Flow

Shaft Diameter (Inch): 1.75 Nominal (Other Sizes Available)



Parker Gerotor Motors Feature



Parker Light Duty Motor - Torqmotor™ TE Series Features/Benefits:
- Roller bearings
- Robust construction for longer life
- Continuous oil flow across internal splines for longer life
- Superior side load capacity
- Smooth, extra low speed operation
- High pressure shaft seal is standard
- Innovative design eliminates the need for a case drain
- Dependability based on high quality design and manufacturing
- Designed and manufactured in Greeneville, TN USA

Parker Light Duty Motor - Torqmotor™ TB Series Features/Benefits:
- DU and sintered copper/steel bushings
- Robust construction for longer life
- Continuous oil flow across internal splines for longer life
- Superior side load capacity
- Smooth, extra low speed operation
- High pressure shaft seal is standard
- Innovative design eliminates the need for a case drain
- Dependability based on high quality design and manufacturing
- Designed and manufactured in Greeneville, TN USA

Parker Medium Duty Motor - Torqmotor™ TF Series Features/Benefits:
- Flange mounts carry up to 4,000 lb. side load
- Wheel mounts carry up to 6,000 lb. side load
- Robust construction for longer life
- Continuous oil flow across internal splines for longer life
- Superior side load capacity
- Smooth, extra low speed operation
- High pressure shaft seal is standard
- Innovative design eliminates the need for a case drain
- Dependability based on high quality design and manufacturing
- Designed and manufactured in Greeneville, TN USA

Parker Heavy Duty Motor - Torqmotor™ TK Series Features/Benefits:
- Flange mounts carry up to 6000 lb. dynamic side load at the key
- Wheel mounts carry up to 7500 lb. dynamic side load at the key
- Robust construction for longer life
- Continuous oil flow across internal splines for longer life
- Superior side load capacity
- Smooth, extra low speed operation
- High pressure shaft seal is standard
- Innovative design eliminates the need for a case drain
- Dependability based on high quality design and manufacturing
- Designed and manufactured in Greeneville, TN USA

Parker Gerotor Motors Applications



Parker Light Duty Motor - Torqmotor™ TE Series Markets
- Turf Equipment
- Aerial
- Agriculture Machinery
- Construction Equipment
- Factory Automation
- Material Handling Equipment
- Oil & Gas
- Vocational & Municipal Equipment


Parker Gerotor Motors TE Applications
- Mini Skid Steer Attachments
- Zero Turn Radius Mowers
- Golf Course Maintenance Equipment
- Sweepers
- Wood Chippers
- Conveyers
- Combine Harvesters
- Winches
- Augers
- Portable Irrigation Systems
- Post Hole Augers
- Specialty Harvesters Such as Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape
- Combine Header Drives
- Sprayers
- Scissor Lifts
- Snow Removal
- Salt and Sand Spreaders
- Oil and Gas Blender Trucks
- Bulk Feed Trucks



Parker Light Duty Motor - Torqmotor™ TB Series Markets
- Aerial
- Agriculture Machinery
- Construction Equipment
- Factory Automation
- Material Handling Equipment
- Oil & Gas
- Food & Beverage
- Vocational & Municipal Eqpmt


Parker Gerotor Motors TB Applications
- Conveyers
- Gear Boxes
- Boom Rotate
- Food Processing
- Winches
- Augers
- Portable Irrigation Systems
- Post Hole Augers
- Specialty Harvesters Such as Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape
- Header Drives
- Snow Removal
- Salt and Sand Spreaders
- Oil and Gas Blender Trucks
- Car Washes
- Bulk Feed Trucks



Parker Medium Duty Motor - Torqmotor™ TF Series Markets
- Turf Equipment
- Aerial
- Agriculture Machinery
- Construction Equipment
- Factory Automation
- Material Handling Equipment
- Oil & Gas
- Forestry Equipment
- Mining


Parker Gerotor Motors TF Applications
- Trenchers
- Skid Steer Attachments
- Zero Turn Radius Mowers
- Golf Course Maintenance Equipment
- Sweepers
- Wood Chippers
- Conveyers
- Combine Harvesters
- Winches
- Augers
- Portable Irrigation Systems
- Post Hole Augers
- Specialty Harvesters Such as Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape
- Combine Header Drives
- Sprayers
- Scissor Lifts
- Snow Removal
- Salt and Sand Spreaders
- Oil and Gas Blender Trucks
- Mini- and Walk-Behind Skid Steers
- Tool Carriers



Parker Heavy Duty Motor - Torqmotor™ TK Series Markets
- Turf Equipment
- Aerial
- Agriculture Machinery
- Construction Equipment
- Factory Automation
- Material Handling Equipment
- Oil & Gas
- Forestry Equipment
- Mining


Parker Gerotor Motors TK Applications
- Trenchers
- Skid Steer Attachments
- Golf Course Maintenance Equipment
- Sweepers
- Wood Chippers
- Conveyers
- Combine Harvesters
- Winches
- Augers
- Portable Irrigation Systems
- Post Hole Augers
- Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
- Combine Header Drives
- Sprayers
- Forestry
- Snow Removal
- Salt and Sand Spreaders
- Pipe Spinners
