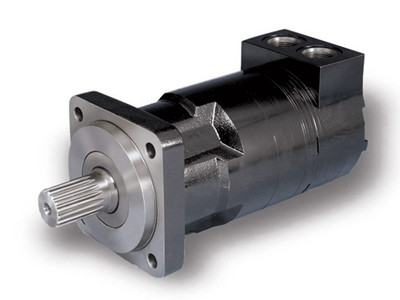

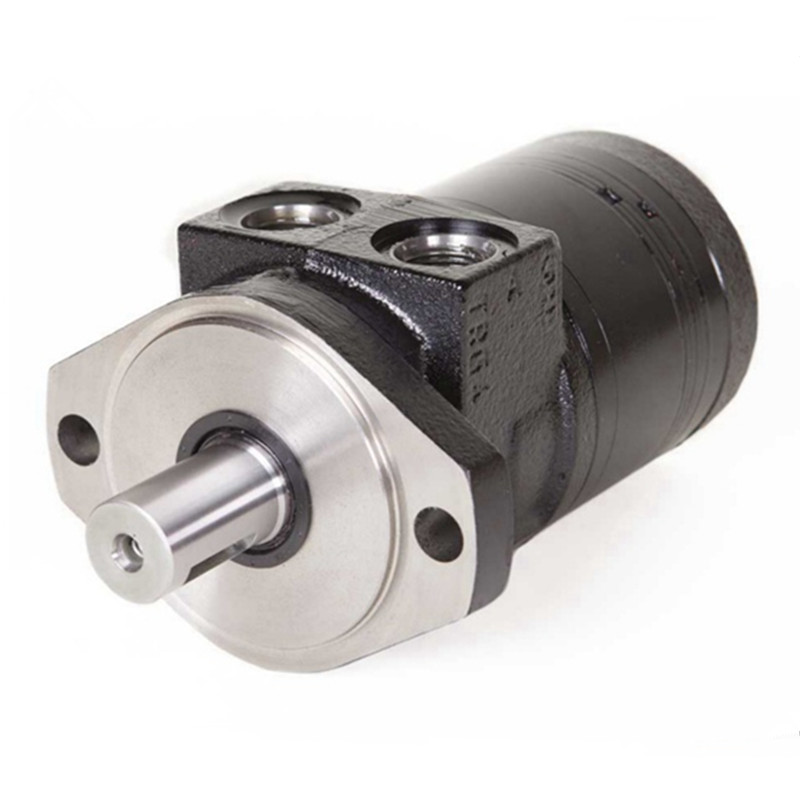

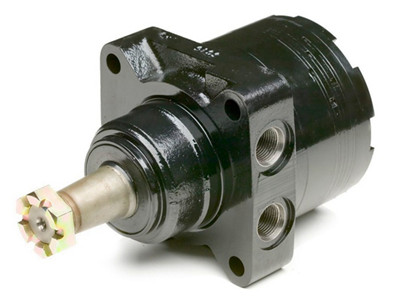

Optimize your hydraulic systems with the Parker TB Series Torqmotor™, a reliable low-speed high-torque (LSHT) motor designed for light to medium-duty applications. With displacements ranging from 2.2 to 24.0 cu in/rev, these motors deliver up to 4700 lb-in of torque and handle intermittent pressures up to 2400 psi. Discover competitive pricing and expert support for Parker TB hydraulic components at HEASH TECH.
The Parker TB Series Torqmotor™ is a durable light-duty hydraulic motor featuring a 1-inch nominal shaft, superior side load capacity up to 1100 lb, a high-pressure shaft seal, and smooth extra-low-speed operation.
Ideal for applications like conveyors, gearboxes, winches, and boom rotates, it eliminates the need for a case drain and ensures long life with continuous oil flow across internal splines.
Manufactured in Greeneville, TN, USA, the Parker TB Series incorporates DU and sintered copper/steel bushings for robust construction. It offers excellent efficiency, true wear compensation, and is part of Parker's comprehensive Gerotor motor lineup, including TE, TF, and TK series.
Detailed performance characteristics for our Parker TB Series Motor
| Parameter | Details |
|---|---|
| Brand | Torqmotor/PARKER |
| Motor Displacement (Cc/Rev) | 36 | 41 | 49 | 65 | 82 | 98 | 130 | 163 | 195 | 228 | 260 | 293 | 328 | 370 | 392 |
| Motor Displacement (Cu In/Rev) | 2.2 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 11.9 | 13.9 | 15.9 | 17.9 | 20.0 | 22.6 | 24.0 |
| Maximum Pressure Differential (Bar) | 100 To 165 Intermittent (83 To 125 Continuous) |
| Maximum Pressure Differential (Psi) | 1450 To 2400 Intermittent (1200 To 1800 Continuous) |
| Maximum Flow (Lpm) | 34 To 57 Intermittent (34 To 45 Continuous) |
| Maximum Flow (Gpm) | 9 To 15 Intermittent (9 To 12 Continuous) |
| Maximum Output Torque (Nm) | 67 To 540 Intermittent (48 To 440 Continuous) |
| Maximum Output Torque (Lb-In) | 596 To 4783 Intermittent (427 To 3897 Continuous) |
| Minimum Starting Torque (Nm) | 50 To 434 Intermittent (44 To 339 Continuous) |
| Minimum Starting Torque (Lb-In) | 440 To 3845 Intermittent (385 To 3000 Continuous) |
| Maximum Speed (Rpm) | 143 To 932 At Intermittent Flow |
| Shaft Diameter (Inch) | 1.00 Nominal (Other Sizes Available) |
Trusted by professionals worldwide for quality and precision
With decades of experience in sourcing and supplying hydraulic components, HEASH TECHNIQUE B.V., headquartered in the Netherlands, delivers Parker TB Series motors to industries worldwide, including agriculture, manufacturing, and marine applications.
We supply high-quality Parker TB Series motors alongside top brands like Bosch Rexroth, Eaton Vickers, and Sauer Danfoss, ensuring robust construction, high-pressure performance (up to 2400 psi), and long service life for light to medium-duty applications.
Our sales network spans Europe, Asia, North America, South America, and Africa, providing reliable delivery and competitive pricing. With offices in the Netherlands, Asia, America, and Africa, we ensure seamless support for your hydraulic needs.
The Parker TB Series Torqmotor™ is designed for light to medium-duty applications requiring low-speed high-torque (LSHT) performance. Compatible applications include:
Suitable for industries like agriculture, construction, and factory automation.
The Parker TB Series features:
Its DU and sintered copper/steel bushings ensure durability, while the high-pressure shaft seal eliminates the need for a case drain.
Yes, HEASH TECH provides OEM and customization services for Parker TB Series motors. We can:
Minimum order quantity for custom configurations is 50 units. Contact us to discuss your requirements.
