Rexroth Proportional Servo Valves

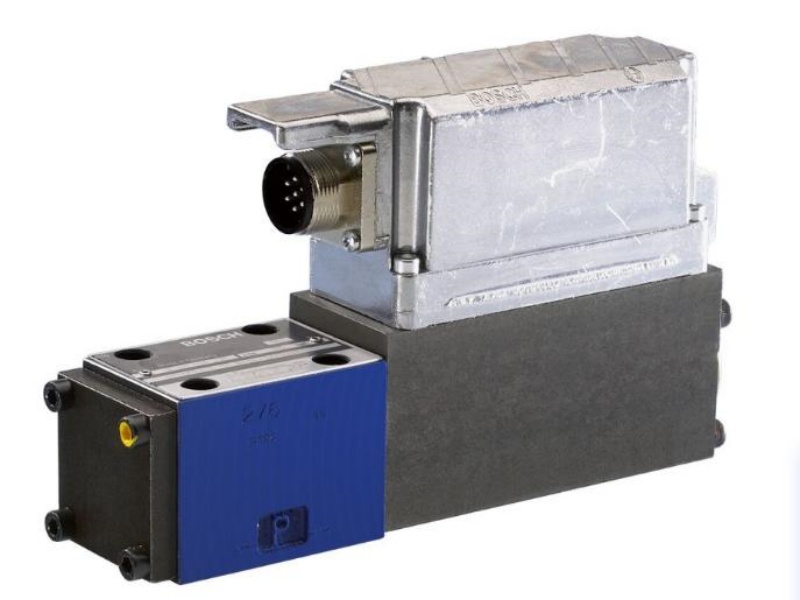

Rexroth Proportional Valve 4WRPEH

Rexroth 4WRPE
Rexroth Proportional Valve 4WRPEH
Rexroth Proportional Valve 4WRPEH

Description

Reviews

Download:

Data Sheet of 4WRPH 6 series

Data Sheet of 4WRPH 10 series

REXROTH Type Code of 4WRPEH Series



Rexroth Proportional Valve 4WRPEH 6 Description

The high-response valve type Rexroth 4WRPEH is a direct operated directional control valve with electric position feedback and integrated electronics (OBE). In the integrated electronics (OBE), the specified command value is compared with the position actual value 4WRPEH. In case of control deviations, the stroke solenoid will be activated which - due to the changed magnetic force - adjusts the control spool against the spring. Stroke/control cross-section is controlled proportionally to the command value. In case of a command value presetting of 0 V, the electronics adjusts the control spool against the spring to central position. In deactivated condition, the spring is untensioned to a maximum and the valve is in fail-safe position.

Switch-off behavior

With switched-off electronics, the valve 4WRPEH will immediately move into the relevant secured basic position (fail-safe). In this connection, it moves through the switching position P–B/A–T which may result in movements at the controlled component. This has to be considered in the system design: Control solenoid with position transducer; Valve body; Connector for possible 2nd stage; Mating connector



Rexroth Proportional Valve 4WRPEH 10 Description

In the integrated electronics, the specified command value is compared with the position actual value. In case of control deviations, the stroke solenoid will be activated which - due to the changed magnetic force - adjusts the control spool against the spring.

Stroke/control cross-section is controlled proportionally to the command value. In case of a command value presetting of 0 V, the electronics adjusts the control spool against the spring to central position. In deactivated condition, the spring is untensioned to a maximum and the 4WRPEH valve is in fail-safe position.

Switch-off behavior

With switched-off electronics, the valve will immediately move into the relevant secured basic position (fail-safe). In this connection, it moves through the position P–B/A–T which may result in movements at the controlled component. This has to be considered in the system design: Control solenoid with position transducer; Valve body; Mating connector



For HEASH TECH, our supply is equal to your demand. HEASH is not just provide 4WRPEH 6, 4WRPEH 10, 4WRPE 6, 4WRPE 10, 4WRPEH 6, 4WRPEH 10... we provide many top manufacturers industrial pumps, mobile pumps, valves, motors. please let us know what your demand and find out the answer. Visit us and contact now!

Rexroth Valve 4WRPEH 6 -2X Technical Data

Type

Rexroth 4WRPEH

Size

6

Component series



2X

Design



Directional spool valve, direct operated, with steel sleeve

Type of actuation



Proportional solenoid with position control, OBE

Anschlussart



For subplate mounting: Porting pattern according to ISO 4401

Installation position



Any

Earth

kg

2.7

Ambient temperature range

°C

-20 … +50

Maximum vibration resistance

g

25

MTTFd values according to EN ISO 13849

yrs

150





Rexroth Valve 4WRPEH 6 -3X Technical Data

Type

Rexroth 4WRPEH

Size

6

Component series



3X

Design



Directional spool valve, direct operated, with steel sleeve

Type of actuation



Proportional solenoid with position control, OBE

Anschlussart



Plate connection, porting pattern according to ISO 4401

Installation position



Any

Earth

kg

2.9

Storage temperature range

°C

+10 … +40

Ambient temperature range

°C

-20 … +60

Sine test according to DIN EN 60068-2-6



10...2000...10 Hz / maximum 10 g / 10 cycles / 3 axes

Random test according to DIN EN 60068-2-64



20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes

Shock test according to DIN EN 60068-2-27



15 g / 11 ms / 3 axes

Maximum relative humidity 1)

%

95

MTTFd values according to EN ISO 13849

yrs

150

1) no condensation



Rexroth Valve 4WRPEH 10 Technical Data

Type

4WRPEH

Size

10

Component series



2X

Design



Directional spool valve, direct operated, with steel sleeve

Type of actuation



Proportional solenoid with position control, OBE

Anschlussart



Plate connection, porting pattern according to ISO 4401

Installation position



Any

Earth

kg

7.1

Ambient temperature range

°C

-20 … +50

Maximum vibration resistance

g

25



Rexroth Valve 4WRPEH 6 -2X Features

4/4 directional design

With control spool and sleeve in servo quality

Operated on one side, 4/4 fail-safe position in switched-off condition

Electric position feedback and integrated electronics (OBE), calibrated in the factory

Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh= 200 Ω)

Use for electro-hydraulic controls in production and test systems



Rexroth Valve 4WRPEH 6 -3X Features

Reliable - proven and robust design

Safe - fail-safe position of the control spool in switched-off condition

Energy-efficient - no pilot oil demand

High quality - control spool and sleeve in servo quality

Flexible - suitable for position, velocity and pressure control

Precise - high response sensitivity and little hysteresis



Rexroth Valve 4WRPEH 10 Features

High-response directional valve, direct operated, with control spool and sleeve in servo quality

Operated on one side, 4/4 fail-safe position in switched-off condition

Electric position feedback and integrated electronics (OBE), calibrated in the factory

Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh= 200 Ω)

Use for electro-hydraulic controls in production and test systems



R901381804 4WRPEH 6 C B24L-3X/M/24A1, R901382316 4WRPEH 6 C3 B04P-3X/M/24A1,

R901382317 4WRPEH 6 C4B04L-3X/M/24A1, R901382318 4WRPEH 6 C4B12L-3X/M/24A1,

R901382319 4WRPEH 6 C4B40L-3X/M/24A1, R901382325 4WRPEH 6 C1B40L-3X/M/24A1,

R901382327 4WRPEH 6 C4B04L-3X/M/24F1, R901382331 4WRPEH 6 C4B12L-3X/M/24F1,

R901382332 4WRPEH 6 C4B24L-3X/M/24F1, R901382333 4WRPEH 6 C4B40L-3X/M/24F1,

R901382338 4WRPEH 6 C4 B02L-3X/M/24F1, R901382345 4WRPEH 6 C3B04L-3X/M/24A1,

R901382346 4WRPEH 6 C4B24L-3X/M/24A1, R901382347 4WRPEH 6 C3B04L-3X/M/24F1,

R901382348 4WRPEH 6 C3B12L-3X/M/24F1, R901382349 4WRPEH 6 C3B24L-3X/M/24F1,

R901382350 4WRPEH 6 C3B40L-3X/M/24F1, R901382353 4WRPEH 6 CB40L-3X/M/24A1,

R901382354 4WRPEH 6 C B40L-3X/M/24F1, R901382357 4WRPEH 6 C3B25P-3X/M/24A1,

R901382359 4WRPEH 6 C4B15P-3X/M/24A1, R901382367 4WRPEH 6 C3 B02L-3X/M/24A1,

R901382368 4WRPEH 6 C5B40L-3X/M/24A1, R901382369 4WRPEH 6 C5 B40L-3X/M/24F1,

R901382376 4WRPEH 6 C B02L-3X/M/24F1, R901382510 4WRPEH 6 C5B24L-3X/M/24F1,

R901382513 4WRPEH 6 C3 B12L-3X/V/24F1, R901382517 4WRPEH 6 C5 B12L-3X/M/24F1,

R901382526 4WRPEH 6 C B24L-3X/V/24F1, R901382363 4WRPEH 6 C4B40P-3X/M/24A1,

0811404609 4WRPEH 6 C3 B40L-2X/G24K0/A1M-816, R901382334 4WRPEH 6 C B08P-3X/M/24A1,

0811404615 4WRPEH 6 C3 B12L-2X/G24K0/A1M-818, 0811404801 4WRPEH 10 C3 B100L-2X/G24K0/A1M,

R901228642 4WRPEH 10 C3 B50L-2X/G24K0/F1V, 0811404802 4WRPEH 10 C4 B50L-2X/G24K0/A1M,

R901382356 4WRPEH 6 C4B02L-3X/M/24A1, R901382315 4WRPEH 6 C3 B40L-3X/M/24A1,

R901382313 4WRPEH 6 C3 B24L-3X/M/24A1, R901382312 4WRPEH 6 C3 B12L-3X/M/24A1,

0811404825 4WRPEH 10 C4 B100P-2X/G24K0/A1M, 0811404365 4WRPEH 6 C3 B12L-2X/G24K0/B5M,

0811404368 4WRPEH 6 C3 B12P-2X/G24K0/A1M-854, 0811404621 4WRPEH 6 C3 B04L-2X/G24K0/B5M,

0811404622 4WRPEH 6 C3 B24L-2X/G24K0/B5M, 0811404623 4WRPEH 6 C4 B12L-2X/G24K0/B5M,

0811404743 4WRPEH 6 C B24L-2X/G24K0/B5M, 0811404756 4WRPEH 10 C5 B50L-2X/G24K0/A1M,

0811404758 4WRPEH 10 C5 B50L-2X/G24K0/F1M, 0811404759 4WRPEH 10 C5 B100L-2X/G24K0/F1M,

0811404761 4WRPEH 10 C4 B100L-2X/G24K0/F1M, 0811404763 4WRPEH 10 C1 B100L-2X/G24K0/F1M,

0811404764 4WRPEH 10 C B50L-2X/G24K0/A1M, 0811404765 4WRPEH 10 C B50L-2X/G24K0/F1M,

0811404800 4WRPEH 10 C3 B50L-2X/G24K0/A1M, 0811404803 4WRPEH 10 C4 B100L-2X/G24K0/A1M,

0811404806 4WRPEH 10 C B100L-2X/G24K0/F1M, 0811404808 4WRPEH 10 C3 B50L-2X/G24K0/B5M,

0811404809 4WRPEH 10 C B100L-2X/G24K0/A1M, 0811404816 4WRPEH 10 C B50P-2X/G24K0/F1M,

0811404817 4WRPEH 10 C3 B100L-2X/G24K0/F1M, 0811404819 4WRPEH 10 C3 B50L-2X/G24K0/F1M,

0811404822 4WRPEH 10 C3 B50P-2X/G24K0/A1M, 0811404823 4WRPEH 10 C3 B100P-2X/G24K0/A1M,

0811404827 4WRPEH 10 C5 B100P-2X/G24K0/A1M, R901212890 4WRPEH 10 C3 B100L-2X/G24K0/F1V,

R901371313 4WRPEH 10 C3 B50L-2X/G24K0/A1V, R901383466 4WRPEH 10 C4 B100L-2X/G24K0/F1V,

R901396969 4WRPEH 6 C3B04L-3X/M/24F1-885, R901411433 4WRPEH 10 C4 B100L-3X/M/24A1,

R901412522 4WRPEH 6 C4B12L-3X/M/24A1-561, R901432014 4WRPEH 6 C B40L-2X/G24K0/C6M,

R901493886 4WRPEH 10 C3 B100L-3X/M/24A1, R901526128 4WRPEH 10 C5 B100P-3X/M/24A1,

R901172455 4WRPEH 6 C3 B40L-2X/G24K0/F1M-816, 0811404613 4WRPEH6C4B40L-2X/G24K0/A1M,

0811404611 4WRPEH 6 C4 B12L-2X/G24K0/A1M, R901382375 4WRPEH 6 C B40P-3X/M/24F1,

0811404634 4WRPEH6C3B40L-2X/G24K0/F1M, 0811404600 4WRPEH 6 C3 B04L-2X/G24K0/A1M,

0811404632 4WRPEH 6 C3 B12L-2X/G24K0/F1M, 0811404821 4WRPEH10C1B100L-2X/G24K0/A1M,

0811404820 4WRPEH10C1B50L-2X/G24K0/A1M, R901382323 4WRPEH 6 C3 B15P-3X/M/24A1,

0811404608 4WRPEH 6 C3 B12L-2X/G24K0/A1M-816, 0811404642 4WRPEH 6 C3 B15P-20/G24K0/A1M,

0811404631 4WRPEH 6 C3 B04L-20/G24 K0/F1M, R901094403 4WRPEH 6 C3 B04L-2X/G24K0/F1M-885,

R901494254 4WRPEH 10 C4 B50L-3X/M/24A1, R901526079 4WRPEH 10 C1 B100L-3X/M/24A1,

0811404606 4WRPEH 6 C3 B02L-2X/G24K0/A1M-816, 0811404602 4WRPEH 6 C3 B24L-2X/G24K0/A1M,

0811404603 4WRPEH6C3B40L-2X/G24K0/A1M, R901192081 4WRPEH 10 C3 B100L-2X/G24K0/A1M=SA,

R901382358 4WRPEH 6 C3 B40P-3X/M/24A1, 0811404607 4WRPEH 6 C3 B04L-20/G24K0/A1M-816,

R901382533 4WRPEH 6 C4 B04P-3X/M/24A1, R901382361 4WRPEH 6 C4 B25P-3X/M/24A1,

R901381804 4WRPEH 6 C B24L-3X/M/24A1, R901382316 4WRPEH 6 C3 B04P-3X/M/24A1,

R901382317 4WRPEH 6 C4B04L-3X/M/24A1, R901382318 4WRPEH 6 C4B12L-3X/M/24A1,

R901382319 4WRPEH 6 C4B40L-3X/M/24A1, R901382325 4WRPEH 6 C1B40L-3X/M/24A1,

R901382327 4WRPEH 6 C4B04L-3X/M/24F1, R901382331 4WRPEH 6 C4B12L-3X/M/24F1,

R901382332 4WRPEH 6 C4B24L-3X/M/24F1, R901382333 4WRPEH 6 C4B40L-3X/M/24F1,

R901382338 4WRPEH 6 C4 B02L-3X/M/24F1, R901382345 4WRPEH 6 C3B04L-3X/M/24A1,

R901382346 4WRPEH 6 C4B24L-3X/M/24A1, R901382347 4WRPEH 6 C3B04L-3X/M/24F1,

R901382348 4WRPEH 6 C3B12L-3X/M/24F1, R901382349 4WRPEH 6 C3B24L-3X/M/24F1,

R901382350 4WRPEH 6 C3B40L-3X/M/24F1, R901382353 4WRPEH 6 CB40L-3X/M/24A1,

R901382354 4WRPEH 6 C B40L-3X/M/24F1, R901382357 4WRPEH 6 C3B25P-3X/M/24A1,

R901382359 4WRPEH 6 C4B15P-3X/M/24A1, R901382367 4WRPEH 6 C3 B02L-3X/M/24A1,

R901382368 4WRPEH 6 C5B40L-3X/M/24A1, R901382369 4WRPEH 6 C5 B40L-3X/M/24F1,

R901382376 4WRPEH 6 C B02L-3X/M/24F1, R901382510 4WRPEH 6 C5B24L-3X/M/24F1,

R901382513 4WRPEH 6 C3 B12L-3X/V/24F1, R901382517 4WRPEH 6 C5 B12L-3X/M/24F1,

R901382526 4WRPEH 6 C B24L-3X/V/24F1, R901382363 4WRPEH 6 C4B40P-3X/M/24A1,

0811404609 4WRPEH 6 C3 B40L-2X/G24K0/A1M-816, R901382334 4WRPEH 6 C B08P-3X/M/24A1,

0811404615 4WRPEH 6 C3 B12L-2X/G24K0/A1M-818, 0811404801 4WRPEH 10 C3 B100L-2X/G24K0/A1M,

R901228642 4WRPEH 10 C3 B50L-2X/G24K0/F1V, 0811404802 4WRPEH 10 C4 B50L-2X/G24K0/A1M,

R901382356 4WRPEH 6 C4B02L-3X/M/24A1, R901382315 4WRPEH 6 C3 B40L-3X/M/24A1,

R901382313 4WRPEH 6 C3 B24L-3X/M/24A1, R901382312 4WRPEH 6 C3 B12L-3X/M/24A1,

0811404825 4WRPEH 10 C4 B100P-2X/G24K0/A1M, 0811404365 4WRPEH 6 C3 B12L-2X/G24K0/B5M,

0811404368 4WRPEH 6 C3 B12P-2X/G24K0/A1M-854, 0811404621 4WRPEH 6 C3 B04L-2X/G24K0/B5M,

0811404622 4WRPEH 6 C3 B24L-2X/G24K0/B5M, 0811404623 4WRPEH 6 C4 B12L-2X/G24K0/B5M,

0811404743 4WRPEH 6 C B24L-2X/G24K0/B5M, 0811404756 4WRPEH 10 C5 B50L-2X/G24K0/A1M,

0811404758 4WRPEH 10 C5 B50L-2X/G24K0/F1M, 0811404759 4WRPEH 10 C5 B100L-2X/G24K0/F1M,

0811404761 4WRPEH 10 C4 B100L-2X/G24K0/F1M, 0811404763 4WRPEH 10 C1 B100L-2X/G24K0/F1M,

0811404764 4WRPEH 10 C B50L-2X/G24K0/A1M, 0811404765 4WRPEH 10 C B50L-2X/G24K0/F1M,

0811404800 4WRPEH 10 C3 B50L-2X/G24K0/A1M, 0811404803 4WRPEH 10 C4 B100L-2X/G24K0/A1M,

0811404806 4WRPEH 10 C B100L-2X/G24K0/F1M, 0811404808 4WRPEH 10 C3 B50L-2X/G24K0/B5M,

0811404809 4WRPEH 10 C B100L-2X/G24K0/A1M, 0811404816 4WRPEH 10 C B50P-2X/G24K0/F1M,

0811404817 4WRPEH 10 C3 B100L-2X/G24K0/F1M, 0811404819 4WRPEH 10 C3 B50L-2X/G24K0/F1M,

0811404822 4WRPEH 10 C3 B50P-2X/G24K0/A1M, 0811404823 4WRPEH 10 C3 B100P-2X/G24K0/A1M,

0811404827 4WRPEH 10 C5 B100P-2X/G24K0/A1M, R901212890 4WRPEH 10 C3 B100L-2X/G24K0/F1V,

R901371313 4WRPEH 10 C3 B50L-2X/G24K0/A1V, R901383466 4WRPEH 10 C4 B100L-2X/G24K0/F1V,

R901396969 4WRPEH 6 C3B04L-3X/M/24F1-885, R901411433 4WRPEH 10 C4 B100L-3X/M/24A1,

R901412522 4WRPEH 6 C4B12L-3X/M/24A1-561, R901432014 4WRPEH 6 C B40L-2X/G24K0/C6M,

R901493886 4WRPEH 10 C3 B100L-3X/M/24A1, R901526128 4WRPEH 10 C5 B100P-3X/M/24A1,

R901172455 4WRPEH 6 C3 B40L-2X/G24K0/F1M-816, 0811404613 4WRPEH6C4B40L-2X/G24K0/A1M,

0811404611 4WRPEH 6 C4 B12L-2X/G24K0/A1M, R901382375 4WRPEH 6 C B40P-3X/M/24F1,

0811404634 4WRPEH6C3B40L-2X/G24K0/F1M, 0811404600 4WRPEH 6 C3 B04L-2X/G24K0/A1M,

0811404632 4WRPEH 6 C3 B12L-2X/G24K0/F1M, 0811404821 4WRPEH10C1B100L-2X/G24K0/A1M,

0811404820 4WRPEH10C1B50L-2X/G24K0/A1M, R901382323 4WRPEH 6 C3 B15P-3X/M/24A1,

0811404608 4WRPEH 6 C3 B12L-2X/G24K0/A1M-816, 0811404642 4WRPEH 6 C3 B15P-20/G24K0/A1M,

0811404631 4WRPEH 6 C3 B04L-20/G24 K0/F1M, R901094403 4WRPEH 6 C3 B04L-2X/G24K0/F1M-885,

R901494254 4WRPEH 10 C4 B50L-3X/M/24A1, R901526079 4WRPEH 10 C1 B100L-3X/M/24A1,

0811404606 4WRPEH 6 C3 B02L-2X/G24K0/A1M-816, 0811404602 4WRPEH 6 C3 B24L-2X/G24K0/A1M,

0811404603 4WRPEH6C3B40L-2X/G24K0/A1M, R901192081 4WRPEH 10 C3 B100L-2X/G24K0/A1M=SA,

R901382358 4WRPEH 6 C3 B40P-3X/M/24A1, 0811404607 4WRPEH 6 C3 B04L-20/G24K0/A1M-816,

R901382533 4WRPEH 6 C4 B04P-3X/M/24A1, R901382361 4WRPEH 6 C4 B25P-3X/M/24A1,





Share your thoughts with us today!   Showing 6 of 0 reviews
Most recent
Top Reviews
Read more
Your rating
Your review *
Name *
Enter your Name
Email *
Enter your Email
Submit
Enter your inquiry details, We will reply you in 24 hours.
Name can't be empty
E-mail can't be empty
Company can't be empty
Phone can't be empty
Phone
Products can't be empty
Products you want
Message can't be empty
Verification code error
code
Refill
Concact Us Now
Hydraulic Pump supplier, Rexroth Pump supplier, Piston Pump supplier, Parker Valve distributors | Heash Valve & Pump
Prinses Margrietplantsoen 33, 2595
AM s-Gravenhage, the Netherlands
You can trust us
How all this mistakens idea of denouncing pleasures and praising pain was born and I will give you a completed by account of the system, and expound.
© 2018 HEASH TECHNIQUE B.V.    RELATED ARTICLES    SiteMap.html    SiteMap.xml    Terms of Service      Privacy Policy
Enter your inquiry details, We will reply you in 24 hours.
Name can't be empty
E-mail can't be empty
Company can't be empty
Phone can't be empty
Products can't be empty
Message can't be empty
Verification code error
code
Refill
