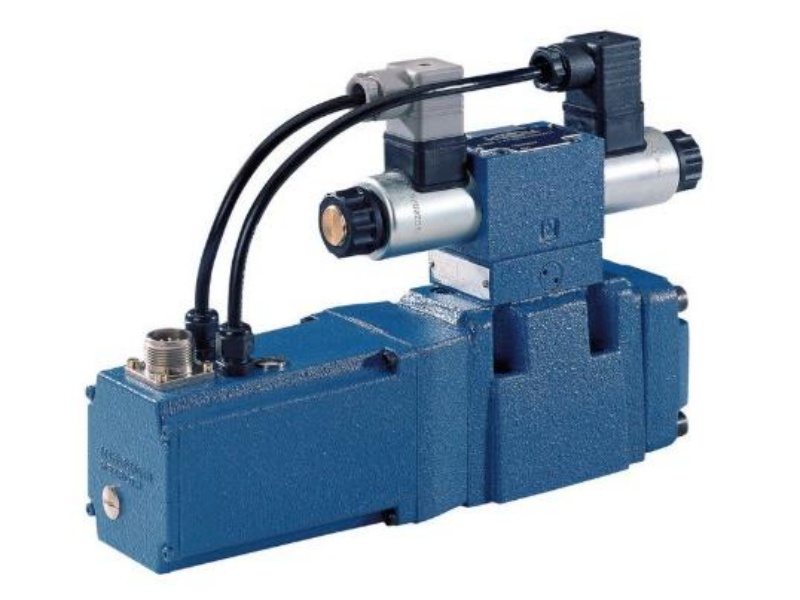

The Rexroth 4WRKE is a pilot-operated 2-stage proportional directional valve with electrical position feedback of the main control spool and integrated electronics (OBE). It controls both the direction and magnitude of hydraulic flow with high precision.

The main control spool is position-controlled via an inductive transducer, making it independent of flow forces even at high flow rates. When no input signal is present, the spring-centred main spool returns to the neutral position automatically.

Rexroth 4WRKE Key Features

Closed-loop spool control — Inductive position feedback forms an internal closed loop, keeping spool position stable against flow force disturbances — essential in press and steel mill applications.

Integrated OBE electronics — On-board electronics eliminate the need for a separate amplifier card, reducing cabinet space and wiring complexity in both new installations and retrofits.

Wide size range — Available from size 10 to size 35, covering flows from 170 L/min up to 4700 L/min within a single product family.

Subplate mounting to ISO 4401 — Standard porting pattern allows direct replacement of older proportional valves without modifying manifold blocks or pipework.

Spring-centred fail-safe — Loss of signal or power returns the main spool to centre, blocking all actuator ports — a predictable safe default for press, moulding and marine circuits.

Rexroth 4WRKE Key Specifications

Valve type: Pilot-operated 2-stage proportional directional valve

Nominal sizes: 10, 16, 25, 27, 32, 35

Maximum operating pressure: 350 bar (ports A, B, P)

Maximum flow: Up to 4700 L/min (size 35)

Control electronics: Integrated OBE, 24 V DC

Position feedback: Inductive transducer (LVDT) on main spool

Mounting: Subplate, porting pattern to ISO 4401

Hydraulic fluid: HL, HLP, HLPD, HVLP, HVLPD, HFC

Seals: NBR standard; FKM on request

Rexroth 4WRKE Weight by Size (approx.)

Size	4WRKE 10	4WRKE 16	4WRKE 25	4WRKE 27	4WRKE 32	4WRKE 35
Max flow (L/min)	170	460	870	1000	1600	4700
Weight (kg)	9	11	18	19.5	37.5	75

Rexroth 4WRKE Applications

The 4WRKE is used wherever proportional flow control requires high repeatability and immunity to load-induced disturbances.

Hydraulic presses & forming machines — Closed-loop spool response ensures repeatable ram velocity profiles in stamping, deep-drawing and forging presses, even as load pressure changes through the stroke.

Steel mill hydraulics — Rolling mill gap control, continuous caster drives and pusher furnace hydraulics where valves must hold position under high and variable side loads.

Injection moulding machines — Precise metering of injection and clamping flow with fast response and spring-centred fail-safe to support tight cycle time requirements.

Marine & offshore deck machinery — Winch and crane drives where load-induced pressure spikes must not cause uncontrolled spool movement. Available with FKM seals for HFC fluid compatibility.

Test rigs & simulation systems — Dynamic load simulation and materials testing equipment requiring high bandwidth, repeatable response and stable OBE-based control.

Commonly Requested Part Numbers

Below are frequently ordered 4WRKE models. If your part number is not listed, please contact us

R900719667 4WRKE10W6-50L-3X/6EG24EK31/A1D3M

R900973372 4WRKE10E100L-3X/6EG24K31/A1D3M

R901146772 4WRKE10W8-100L-3X/6EG24EK31/F1D3M

R900979371 4WRKE16W6-200L-3X/6EG24ETK31/A1D3M

R900973370 4WRKE16E1-200L-3X/6EG24K31/A1D3M

R900973371 4WRKE16E200L-3X/6EG24K31/A1D3M

R901000254 4WRKE16W6-200L-3X/6EG24K31/F1D3M

R900705661 4WRKE16W8-200L-3X/6EG24K31/F1D3M

R900973369 4WRKE25E-350L-3X/6EG24K31/A1D3M

R900704202 4WRKE25E350L-3X/6EG24ETK31/A1D3M

R900973362 4WRKE25W6-350L-3X/6EG24K31/A1D3M

R900705057 4WRKE25W8-350L-3X/6EG24EK31/F1D3M

R900249554 4WRKE25W8-350L-3X/6EG24K31/A1D3M

R900616821 4WRKE27W6-500L-3X/6EG24K31/A5D3M

R901025115 4WRKE27E500L-3X/6EG24EK31/A5D3M

R901088904 4WRKE32W6-600L-3X/6EG24EK31/A1D3M

R900245364 4WRKE32E600L-3X/6EG24K31/F1D3M

R900249276 4WRKE32W6-600L-3X/6EG24ETK31/A1D3M

R900762781 4WRKE35E1000L-3X/6EG24-EK31/C1D3M

R901290191 4WRKE35E1000L-3X/6EG24K31/F1D3M

R901136533 4WRKE35W6-1000L-3X/6EG24K31/A1D3M

Download:

Data Sheet of 4WRKE series

REXROTH Type Code of 4WRKE Series

HEASH TECHNIQUE B.V., is pleased to be your components source for hydraulics and electronics from Europe. Welcome enquiry us if you demand Rexroth valve 4WRKE or any other Rexroth valves, pumps, motors, as: Rexroth Prop./Servo Valves: 4WRAE, 4WRZE, 4WREE, 4WRPEH, 4WRKE, 4WRDE, 4WRTE, DBEME, 4WS2EM, 4WSE3E, 4WRSEH, 3DREME, 3DREPE, VT-DFPE, M-3SED, M-3SEW, STW, 2WFCE, 2WRCE, SCA, ZDC, DBW, DBWA, DBA, 3FRE, 2FRW, 4WRH, 3DRG, LC2A, Z4WEH, 4WRLE,... Rexroth Pump/Motor: A4VSO, A11VLO, SYDFEE, P A4VSG, A4CSG, A7VO, A7VK, A17FO, A4VG, PV7, A15VO, A6VM, A10VSO, A20VO, A2FM, A2FO, A4FM, A4FO,... Hengst filter/element (Rexroth filter MNR as R928.....).
