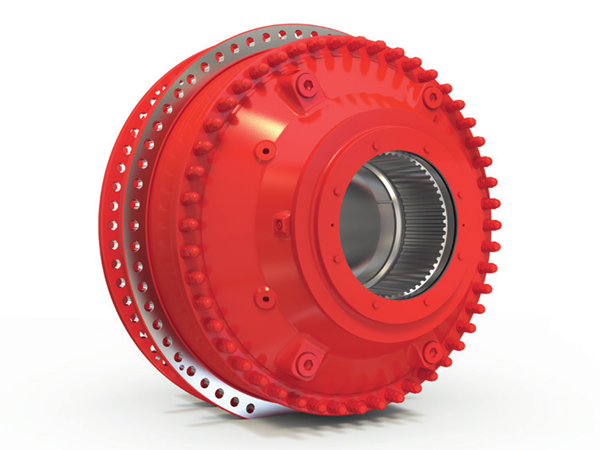

Hagglunds CBM Radial Piston Hydraulic Motor
Hagglunds CBM Motor CBM 2000, CBM 3000, CBM 4000, CBM 5000, CBM 6000
Description
Reviews
Download:
Hagglunds CBM Radial Piston Hydraulic Motor Description
Hagglunds CBM Motor, is the world's largest hydraulic motor. When it comes to production, everyone wants more. But these days there’s less of everything else: from available time to the energy and resources for the job. With the Hägglunds CBM direct drive from Bosch Rexroth, the equation is easier to solve.
The Hägglunds CBM packs 50 % more torque into a motor that’s smaller and 50 % lighter than its predecessor. That gives it the world’s highest torque-to-weight ratio. Even so, it has all the advantages you’d expect from a direct drive. Full torque from zero, protection from shock loads and fourquadrant operation are part of the same small package.
Put simply, the Hägglunds CBM does more with less, and lets you do the same. From industry to offshore, you can handle more work with less space, less energy and less weight on the driven shaft. That means greater productivity with a smaller footprint. And that’s an ingenious solution.
Bosch Rexroth hydraulics technology is counted on worldwide to deliver outstanding performance in industrial and mobile applications. As the technology leader, Rexroth refine each system to incorporate the quality and capabilities you need to help maximize your system.
Hagglunds CBM Motor Performance:
-Small footprint (total occupied area)
-High starting torque
-4-Quadrant drive
-Dynamic brake
-Constant torque throughout speed range
-Frequent start/stop capacity
Hagglunds CBM Motor Features
- High power density
- High torque density
- Energy efficient
- Flexible, many sizes, few mechanical interfaces.
- Insensitive for shock loads
- Very low moment of inertia
- Small footprint (total occupied volume)
- Freewheeling possibility
- Through hole diameter 270 mm
- Tandem mounting possibility
- Version with shrink disc coupling available for CBM 2000 to CBM 3000, which gives direct and easy retrofit for Hägglunds MB 1600 and MB 2400 motors
Hagglunds CBM Motor Technical Data
|
Motor Type
|
Displacement
|
Spec.Torque
|
Max Speed
|
Max Pressure
|
Max Torque
|
Weight
|
|
Size
|
[cm³ / rev]
|
[Nm / bar]
|
[rpm]
|
[bar]
|
[kNm]
|
[kg]
|
|
CBM 2000-1200
|
75832
|
1200
|
58
|
350
|
394
|
4100
|
|
CBM 2000-1400
|
88301
|
1400
|
48
|
350
|
460
|
4100
|
|
CBM 2000-1600
|
100770
|
1600
|
41
|
350
|
525
|
4100
|
|
CBM 2000-1800
|
113748
|
1800
|
36
|
350
|
591
|
4100
|
|
CBM 2000-2000
|
126726
|
2000
|
32
|
350
|
657
|
4100
|
|
CBM 3000-2200
|
138686
|
2200
|
29
|
350
|
722
|
5000
|
|
CBM 3000-2400
|
151155
|
2400
|
26
|
350
|
788
|
5000
|
|
CBM 3000-2600
|
164133
|
2600
|
24
|
350
|
854
|
5000
|
|
CBM 3000-2800
|
177111
|
2800
|
22
|
350
|
919
|
5000
|
|
CBM 3000-3000
|
190089
|
3000
|
20
|
350
|
985
|
5000
|
|
CBM 4000-3200
|
201540
|
3200
|
18
|
350
|
1051
|
5800
|
|
CBM 4000-3400
|
214518
|
3400
|
17
|
350
|
1116
|
5800
|
|
CBM 4000-3600
|
227496
|
3600
|
16
|
350
|
1182
|
5800
|
|
CBM 4000-3800
|
240474
|
3800
|
15
|
350
|
1248
|
5800
|
|
CBM 4000-4000
|
253452
|
4000
|
14
|
350
|
1313
|
5800
|
|
CBM 5000-4600
|
290859
|
4600
|
12
|
350
|
1510
|
6700
|
|
CBM 5000-5000
|
316815
|
5000
|
11
|
350
|
1642
|
6700
|
|
CBM 6000-5600
|
354222
|
5600
|
9
|
350
|
1838
|
7500
|
|
CBM 6000-6000
|
380178
|
6000
|
9
|
350
|
1970
|
7500
|
Hagglunds CBM Motor used in industries and applications
Hagglunds is a world-renowned manufacturer of low-speed and high torque hydraulic drive systems. At present, Hagglunds has been acquired by Bosch Rexroth and has become a member of the Bosch Group Germany.
Hagglunds CBM motors are widely used in hydraulic transmission systems for various machinery such as large ships, port terminals, steel plants, power plants, chemical plants, paper and pulp industry, rubber production, sugar processing, waste recycling, plastic machinery, light industrial machinery, metallurgical machinery, mining machinery, lifting and transportation equipment, heavy machinery, petroleum and coal mining machinery, ship deck machinery, machine tools, geological drilling equipment, etc. Especially suitable for transmission machinery such as lifting winches, drum machinery, various rotary machinery drives, track and wheel walking mechanisms. Compact hydraulic motors are used for research vessels, large lifting vessels, pipeline laying, oil exploration vessels, as well as for self elevating drilling platforms and semi submersible applications.
Hägglunds Motor CBM Model, like as:
R939068295 CBM 2000 1200 SA0N0C 01 05, R939063310 CBM 2000 1000 SA0NHC 00 05, R939058530 CBM 2000 1000 SA0N0A 00 00, R939055863 CBM 2000 1200 SA0N0A 00 00, R939063308 CBM 2000 1200 SB0N0C 00 05, R939058705 CBM 2000 1400 SA0N0A 00 05, R939063178 CBM 2000 1400 SA0N0C 00 00, R939058707 CBM 2000 1400 SB0N0A 00 05, R939055831 CBM 2000 1600 SA0N0A 00 00, R939064019 CBM 2000 1600 SA0N0A 00 12, R939055824 CBM 2000 1600 SA0VHA 00 00, R939063297 CBM 2000 1600 SB0V0C 00 05, R939055815 CBM 2000 1800 SA0N0A 00 00, R939058691 CBM 2000 1800 SA0NHA 00 05, R939055817 CBM 2000 1800 SB0N0A 00 00, R939063290 CBM 2000 1800 SB0N0C 00 05, R939055795 CBM 2000 2000 SA0N0A 00 00, R939055787 CBM 2000 2000 SA0NHA 00 00, R939058689 CBM 2000 2000 SB0N0A 00 05, R939063162 CBM 2000 2000 SB0N0C 00 00, R939059465 CBM 3000 2200 SA0N0A 00 06, R939063222 CBM 3000 2200 SA0N0C 00 00, R939063342 CBM 3000 2200 SA0NHC 00 05, R939056381 CBM 3000 2400 SA0N0A 00 00, R939063368 CBM 3000 2400 SA0N0C 00 06, R939056373 CBM 3000 2400 SA0NHA 00 00, R939056383 CBM 3000 2400 SB0N0A 00 00, R939063370 CBM 3000 2400 SB0N0C 00 06, R939068676 CBM 3000 2600 SA0N0C 01 06, R939056365 CBM 3000 2600 SA0N0A 00 00, R939058737 CBM 3000 2600 SB0N0A 00 05, R939063335 CBM 3000 2600 SB0V0C 00 05, R939056349 CBM 3000 2800 SA0N0A 00 00, R939058727 CBM 3000 2800 SA0NHA 00 05, R939058723 CBM 3000 3000 SA0N0A 00 05, R939063195 CBM 3000 3000 SA0NHC 00 00, R939063322 CBM 3000 3000 SB0N0C 00 05, R939063276 CBM 4000 3200 SA0N0C 00 00, R939063277 CBM 4000 3200 SA0V0C 00 00, R939063279 CBM 4000 3200 SB0V0C 00 00, R939056461 CBM 4000 3400 SA0N0A 00 00, R939056463 CBM 4000 3400 SB0N0A 00 00, R939056437 CBM 4000 3600 SA0NHA 00 00, R939063262 CBM 4000 3600 SA0NHC 00 00, R939056422 CBM 4000 3800 SA0VHA 00 00, R939063257 CBM 4000 3800 SA0VHC 00 00, R939063252 CBM 4000 4000 SA0N0C 00 00, R939056405 CBM 4000 4000 SA0NHA 00 00, R939063255 CBM 4000 4000 SB0V0C 00 00, R939063232 CBM 5000 4600 SA0NHC 00 00, R939056561 CBM 5000 4600 SA0V0A 00 00, R939063227 CBM 5000 5000 SA0VHC 00 00, R939056546 CBM 5000 5000 SB0N0A 00 00, R939063245 CBM 6000 5600 SA0VHC 00 00, R939056596 CBM 6000 5600 SB0N0A 00 00, R939061050 CBM 6000 6000 SA0N0A 00 09, R939063239 CBM 6000 6000 SA0VHC 00 00, R939056580 CBM 6000 6000 SB0N0A 00 00
