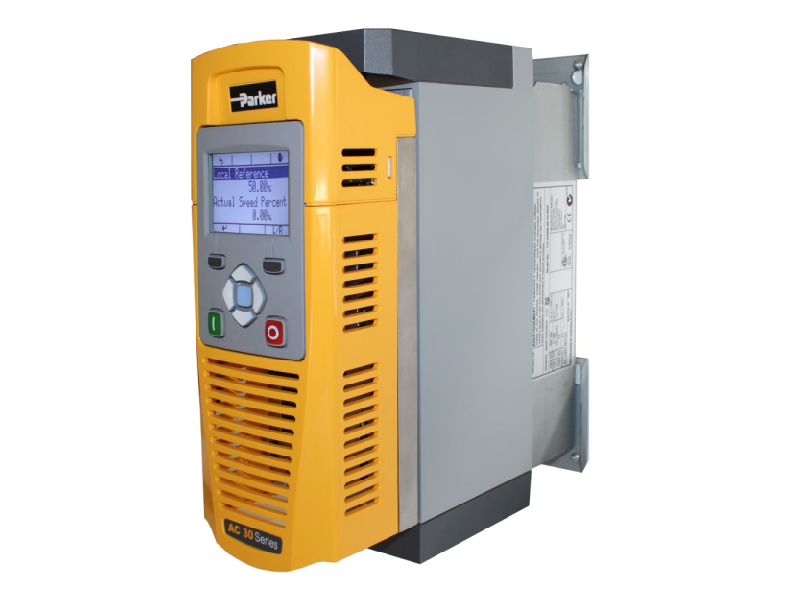

Parker AC30 is a highly-modular industrial variable-speed drive platform covering heavy-duty power from 0.75 kW up to 450 kW. It comes in three control variants: AC30V for standalone use, AC30P for multi-drive synchronization, and AC30D with dual-encoder interfaces for electronic line-shaft applications.
This IP20 unit supports AC induction and PMAC permanent-magnet motors; closed-loop vector control is available via optional encoder or resolver cards. Featuring standard STO SIL3 / PLe Cat 3 safety, on-board Ethernet and SD-card for backup and firmware update. Conformal coating enables operation under harsh 3C3 / 3C4 hydrogen-sulphide environments. Chassis or through-panel mounting is supported. Free DSELite / PDQ-CODESYS software simplifies commissioning for OEM and system integrators.

Parker AC30 Series Variable Frequency Drives Features

- Modular Multi-variant Platform
Three interchangeable control modules. Supports V/Hz scalar, sensor-less vector and optional closed-loop vector control, compatible with AC induction and PMAC motors. Expandable I/O and field-bus slots for custom machine requirements.
- Practical Built-in Application Functions
Pre-loaded macros for pumps, fans and process equipment. Integrated function-blocks cover flying load catch, multi-loop PID, fire-mode operation, skip-frequency vibration suppression and pump protection logic.
- Flexible Industrial Connectivity
Native Ethernet TCP/IP. AC30P / AC30D offer dual-Ethernet with IEEE1588 time-synchronized peer-to-peer communication. Optional field-bus cards support Profinet IO, Ethernet-IP, CANopen, EtherCAT, Modbus RTU. SD-card for parameter backup and firmware upgrade.
- Easy Commissioning & Maintenance
Multi-language graphical keypad (remote-mountable). Quick-start wizards within free Parker DSE-Lite / PDQ software. Removable terminal covers, spring-clamp terminals and replaceable fans cut servicing time.
- Safety & Harsh-environment Reliability
Standard Safe-Torque-Off STO SIL3 / PLe Cat 3. Conformal PCB coating for 3C3 / 3C4 H₂S-rich atmospheres. Optional EMC filter and DC-link choke for harmonic suppression. Heavy-duty overload: 150 % for 60 seconds, 180 % for 3 seconds.

Parker AC30 Series Variable Frequency Drives Applications

- Centrifugal Pumps
- HVAC & Ventilation Fans
- Compressors
- Conveyors
- Mixers & Agitators
- Winding & Unwinding Machinery
- Printing & Converting Equipment
- Factory Automation Process Lines
- Pulp & Paper Processing
- Water & Waste-water Treatment

HEASH TECHNIQUE B.V., is well-experienced in automation & drive components. Please feel free to contact us if you require Parker AC30 series frequency drives, or other Parker products including proportional valves, pumps, motors and cooling units. Welcome to send us inquiry.
