Parker DFplus D1FP / D3FP XG Series Proportional Valves

Description

These XG suffix custom valves are factory-calibrated DFplus direct-operated proportional hydraulic spare parts (NG06 D1FP / NG10 D3FP series). They serve as direct drop-in replacement components optimized for MAN 2-stroke and 4-stroke marine diesel control systems. Every unit adopts custom-machined spool characteristic curves precisely matched with MAN ME/MC engine FIVA closed-loop hydraulic control logic.

Two mainstream electronic configurations are available to fit different MAN vessel system architectures: analog NS00 with 0-10 V control signal and NS0D EtherCAT fieldbus digital version. All valves integrate patented VCD voice coil drive, delivering 350Hz dynamic response for high-precision ship exhaust valve and FIVA fuel injection hydraulic circuits, ideal for MAN marine engine equipment.

Model Classification

1. NS00 Analog
For hydraulic speed & pressure control circuits of MAN four-stroke auxiliary generator sets

D1FPE50MA9NS00XG264
D1FPE50HA9NS00XG264
D1FPE50FA9NS00XG264
D1FPE50MB9NS00XG267
D1FPE50HB9NS00XG267
D1FPE50FB9NS00XG265

2. NS0D EtherCAT
High-precision digital proportional spares for MAN B&W ME series two-stroke main engine fuel injection & exhaust valve FIVA hydraulic loops

D1FPE50CB9NS0DXG520
D1FPE50HB9NS0DXG560
D1FPE50MB9NS0DXG560

3. D3FP NG10 High Flow
Large-flow NG10 DFplus proportional valves (NW00 spool code) for high-power MAN main engine hydraulic actuators

D3FPE01YB9NW00XG505
D3FPE01YB9NW00XG269

Key Marine Advantages

1. Custom XG factory preset calibration for MAN FIVA hydraulic systems, perfectly interchangeable drop-in spare valve for original MAN engine proportional parts
2. Reinforced internal valve structure to withstand long-term sustained vibration and wide temperature variation inside confined ship engine cabins
3. Dual electronic signal solutions for differentiated marine equipment matching:
- NS00 analog (0–10 V): Stable pressure & flow regulation for MAN 4-stroke marine auxiliary generator hydraulic circuits
- NS0D EtherCAT fieldbus: High-speed synchronous closed-loop control for MAN main engine FIVA fuel injection and exhaust valve drives
4. Retain full standard DFplus core performance: Ultra-low hysteresis, outstanding repeatability, maximum rated working pressure up to 350 bar
5. Complete original Parker factory test reports supplied to meet vessel classification society inspection and shipyard project acceptance requirements

Marine Application Scope

- MAN B&W two-stroke main engine exhaust valve hydraulic drive circuits
- MAN ME / MC series FIVA fuel injection proportional control systems
- Hydraulic regulation loops for 4-stroke marine auxiliary generator units
- Closed-loop hydraulic control dedicated to MAN engine rooms on cargo ships and offshore platforms
- Hydraulic valve retrofit & full spare part replacement projects for all MAN marine diesel equipment

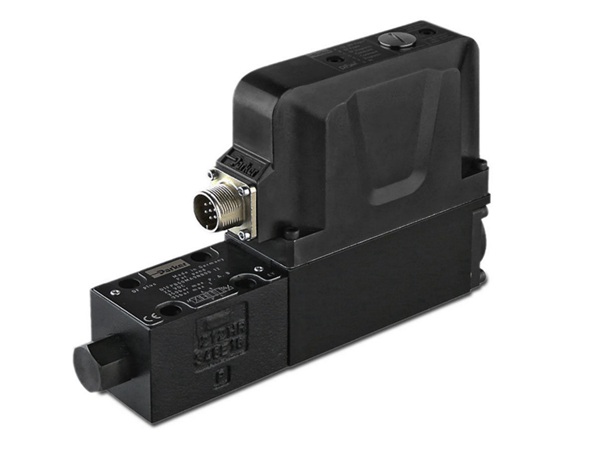

Parker Proportional Directional Control Valve - Series D1FP / D3FP Description

The new direct operated DFplus® control valves D1FP and D3FP with EtherCAT interface show extremely high dynamics combined with maximum flow. They are used for highest accuracy in positioning of hydraulic axis and controlling of pressure and velocity. So, it is the preferred choice for meeting with above features. Driven by the patented VCD® actuator, the D1FP / D3FP reach the frequency response of real servo valves. At power-down the spool moves in a defined position. All common input signals are available.

Version with EtherCAT interface

The D1FP / D3FP with EtherCAT interface fulfills the requirements of modern communication

between valve and main control. Due to high data transmission speed and short cycle times, the high dynamics of the DFplus valves can be also utilized within the fieldbus system.

Version with freely configurable supervising control circuit

DFplus valves D1FP*D and D3FP*D with freely configurable superior control circuit allow the high dynamic control without an additional controller. Via the integrated electronics and an analogue sensor, the valves assume either the precise pressure or position control.

Parker Proportional Valve - D1FP / D3FP Series Features/Benefits:

- Real servo valve dynamics (-3 dB / 350 Hz at ±5 % input signal) - ideal for demanding applications, ensures optimized cycle times

- Very good repeatability - improved process and product accuracy

- Robust valve design - minimized failure

- Digital electronics - can be easily adapted to the application, resulting in flexible use

- Short delivery time - no storage necessary

- Defined spool positioning at power-down - optional P-A/B-T or P-B/A-T or center position (for overlapped spools)

- With Ether CAT interface upon request - high data speeds, short cycle times

- Optionally with freely configurable supervising control circuit (D1FP*D, D3FP*D)

Parker Proportional Valve - D1FP / D3FP Series Features/Benefits:
- Real servo valve dynamics (-3 dB / 350 Hz at ±5 % input signal) - ideal for demanding applications, ensures optimized cycle times
- Very good repeatability - improved process and product accuracy
- Robust valve design - minimized failure
- Digital electronics - can be easily adapted to the application, resulting in flexible use
- Short delivery time - no storage necessary
- Defined spool positioning at power-down - optional P-A/B-T or P-B/A-T or center position (for overlapped spools)
- With Ether CAT interface upon request - high data speeds, short cycle times
- Optionally with freely configurable supervising control circuit (D1FP*D, D3FP*D)

Parker Proportional Valve - D1FP / D3FP Series Applied Range

Markets:
- Industrial
- Machine tools
- Molding
- Marine (non military)

Applications:
- General presses
- Machine tool
- Blow molding
- Marine Diesel fuel injection/exhaust valve control

Note: The version with explosion protection is no longer available.
