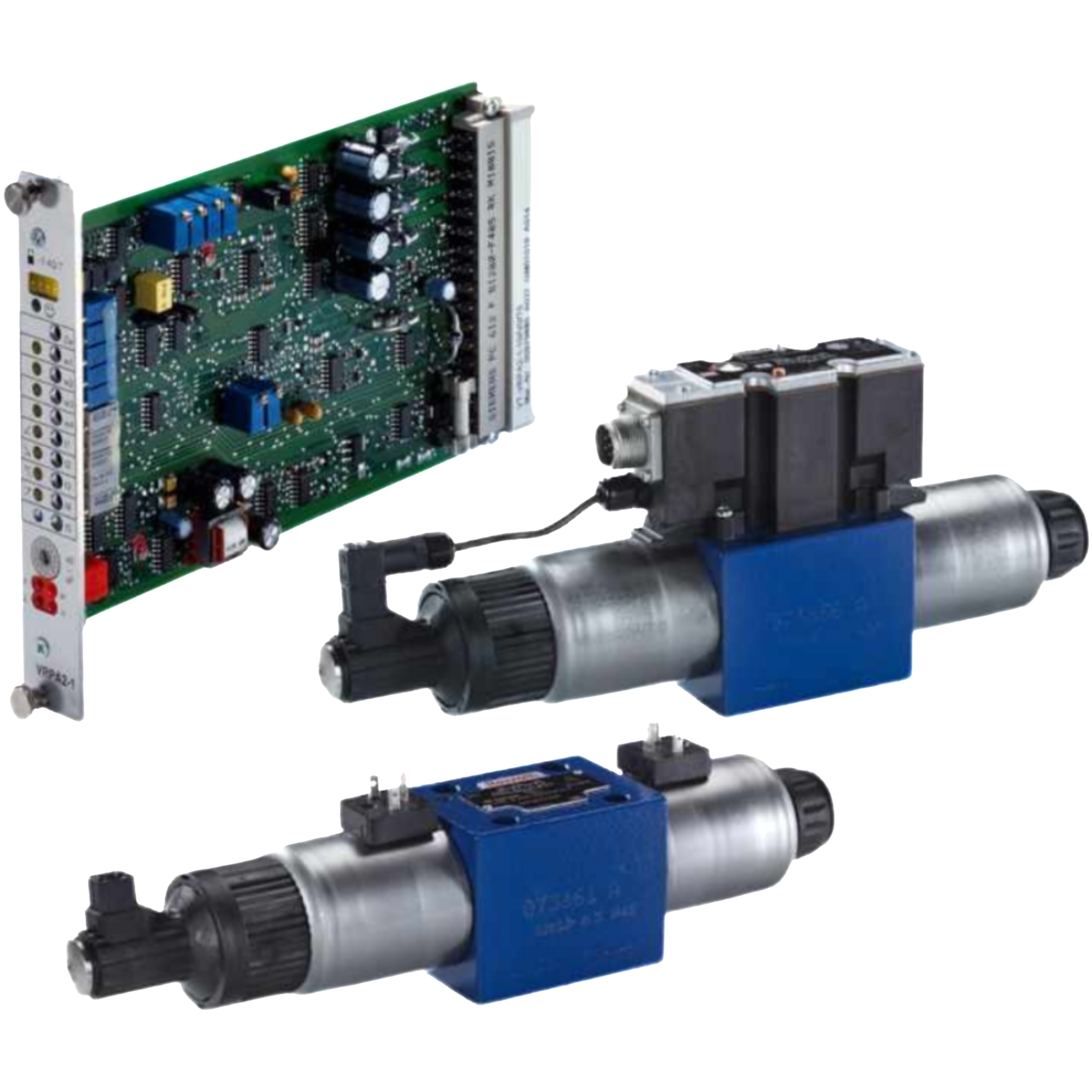

The Rexroth 4WREE is a direct operated 4/2 and 4/3 proportional directional valve with proportional solenoids and integrated OBE electronics. Equipped with electrical position feedback, it precisely controls the direction and volume of hydraulic flow. This valve features high adjustability, excellent stability, fast response and high control accuracy, suitable for various hydraulic control scenarios.

It adopts plate structure and detachable proportional solenoids for reliable operation. As a core component of high-performance hydraulic systems, it delivers consistent performance under diverse working environments.

Rexroth 4WREE Key Features

Integrated OBE Electronics — On-board electronics eliminate separate amplifier cards, saving cabinet space and simplifying field wiring.

Electrical Position Feedback — Inductive transducer provides closed-loop spool control for high precision and repeatability.

Direct Operated Design — Fast response and reliable performance without pilot pressure, ideal for compact hydraulic systems.

Spring-centred Fail-safe — Loss of power or signal returns the spool to centre for reliable safety operation.

Standard Subplate Mounting — Porting pattern complies with ISO 4401, allowing direct drop-in replacement without manifold modifications.

Rexroth 4WREE Key Specifications

Valve Type: Direct operated 4/2 and 4/3 proportional directional valve

Nominal sizes: 6, 10

Component Series: 2X

Maximum Operating Pressure: 315 bar (ports A, B, P); 210 bar (port T)

Rated Flow (Δp=10 bar): 4/8/16/32 L/min (size 6), 25/50/75 L/min (size 10)

Maximum Flow: 80 L/min (size 6), 180 L/min (size 10)

Control Type: Integrated OBE (4WREE); Separate amplifier (4WRE)

Control Signal: ±10 V (A1) / 4–20 mA (F1)

Supply Voltage: 24 V DC (19.4 – 35 V)

Mounting: Subplate mounting, porting pattern to ISO 4401

Hydraulic Fluid: HL, HLP, HFC

Seals: NBR standard; FKM on request

Protection Class: IP65 (with mating connector mounted)

Origin: Made in Germany

Rexroth 4WREE Weight by Size (approx.)

Size	6	10
4WRE (without OBE, kg)	2.2	6.3
4WREE (with OBE, kg)	2.4	6.5

Data Sheet of 4WREE series REXROTH Type Code of 4WREE Series

Rexroth 4WREE Applications

The 4WREE series is the preferred choice for precise flow and direction control in high-performance hydraulic systems across multiple industries.

Industrial Machinery — Provides accurate flow and directional control for gantry planers, pullers and general production equipment, ensuring consistent cycle times.

Plastic & Rubber Machinery — Delivers precise metering for injection moulding, extrusion and die-casting processes, improving product quality and reducing scrap.

Metallurgical Equipment — Used in rolling mill auxiliary drives and continuous casting systems, withstanding harsh operating conditions and cyclic loads.

Mobile Hydraulic Systems — Compact design and fast response suit construction machinery, agricultural equipment and material handling vehicles.

Paper & Food Processing — Delivers reliable performance in demanding production environments, with optional FKM seals for compatibility with special fluids.

Commonly Requested Material Numbers (MNR)

Below are frequently ordered 4WREE models. If your part number is not listed, please contact us freely.

4WREE 6 Series

R901517461 4WREE6E1-08-3X/V/24A1

R901524417 4WREE6E1-08-3X/V/24F1

R901514691 4WREE6E1-16-3X/V/24A1

R901517460 4WREE6E1-16-3X/V/24F1

R901496448 4WREE6E1-32-3X/V/24F1

R901522908 4WREE6V1-08-3X/V/24A1

R901541252 4WREE6V1-08-3X/V/24F1

R901524434 4WREE6V1-16-3X/V/24A1

R901496440 4WREE6V16-3X/V/24A1

R901496444 4WREE6W1-08-3X/V/24A1

R900907440 4WREE6V16-2X/G24K31/A1V

R900913359 4WREE6W1-32-2X/G24K31/A1V

R900907114 4WREE6E32-2X/G24K31/A1V

R900914841 4WREE6V1-32-2X/G24K31/A1V

R901354752 4WREE6W1-32-2X/G24K31/F1M

R900924607 4WREE6V75-2X/G24K31/A1V

R900927231 4WREE6E50-2X/G24K31/A1V

R901576162 4WREE6V50-3X/V/24A1

R901146638 4WREE6V75-2X/G24K31/A1V

R900927234 4WREE6V1-75-2X/G24K31/A1V

R900927356 4WREE6E75-2X/G24K31/F1V

R900935426 4WREE6V1-08-2X/G24K31/A1V

R900939627 4WREE6W1-16-2X/G24K31/A1V

R900950341 4WREE6E08-2X/G24K31/A1V-655

R901362947 4WREE6W1-32-2X/G24K31/A1V-660

R901540515 4WREE6V32-3X/V/24A1

R901514698 4WREE6V32-3X/M/24F1

R900953729 4WRE6W1-08-2X/G24K4/V

R900954095 4WRE6W1-16-2X/G24K4/V

R901354780 4WREE6E50-2X/G24K31/F1M

R900246793 4WREE6W32-2X/G24K31/F1V

R900976331 4WREE6V04-2X/G24K31/F1V

R901524433 4WREE6V04-3X/V/24F1

R901495957 4WREE6E16-3X/V/24A1-655

R901496429 4WREE6E32-3X/V/24A1-655

R900920567 4WREE6E16-2X/G24K31/A1V

R900924283 4WREE6W08-2X/G24K31/F1V

R900909367 4WREE6V08-2X/G24K31/A1V

R900949863 4WREE6V1-08-2X/G24K31/F1V

R900968149 4WRE6E1-08-2X/G24K4/V

R901496446 4WREE6E1-32-3X/V/24A1

R900954092 4WRE6E16-2X/G24K4/V

R900940561 4WREE6V16-2X/G24K31/F1V

R901496427 4WREE6E16-3X/V/24A1

R901514051 4WREE6E04-3X/V/24A1

4WREE 10 Series

R900943804 4WREE10V1-50-2X/G24K31/A1V

R901354786 4WREE10W1-75-2X/G24K31/F1M

R900927230 4WREE10E75-2X/G24K31/A1V

R900927235 4WREE10V50-2X/G24K31/A1V

R900246856 4WREEM10E50-2X/G24K34/B6V

R900948360 4WREE10W75-2X/G24K31/F1V

R900927231 4WREE10E50-2X/G24K31/A1V

R900976119 4WREE10W1-75-2X/G24K31/F1V

R901381875 4WREE10E1-75-2X/G24K31/A1M

R900927233 4WREE10W75-22/G24K31/A1V

R900940191 4WREE10EA75-2X/G24K31/A1V

R900933476 4WREE10W1-32-2X/G24K31/F1V

R901090746 4WREE10E1-75-20/G24K34/B6V

R900726605 4WRE10E1-25-2X/G24K4/V

R901354776 4WREE10E1-50-2X/G24K31/F1M

R900392346 4WRE10W32-1X/24K4/M

R900954096 4WRE10W32-2X/G24K4/V

R900952239 4WREE10E75/G24K31/A1V-655

R900954106 4WRE10W50-2X/G24K4/V

R900943094 4WREE10E50-2X/G24K31/F1V

R900933077 4WREE10W1-50-2X/G24K31/A1V

R901354782 4WREE10V50-2X/G24K31/F1M

R900924975 4WREE10V50-2X/G24K31/F1V

R900617269 4WRE10E1-75-2X/G24K4/V

R900956458 4WREE10W1-25-2X/G24K31/A1V

R900962405 4WREE10W1-25-2X/G24K31/F1V

R901354784 4WREE10W1-50-2X/G24K31/F1M

R901371014 4WREE10W1-75-2X/G24K31/A1M

R900933074 4WREE10W25-2X/G24K31/A1V

R901127151 4WREE10W25-2X/G24K31/A1V-280

R900953102 4WREE10W25-2X/G24K31/F1V

R900244748 4WREE10W3-75-2X/G24K31/F1V

R901354788 4WREE10W50-2X/G24K31/F1M

R901446211 4WREE10W75-2X/G24K31/A1M

R901002587 4WREE10WA75-2X/G24K31/A1V

R900933073 4WREE10E25-2X/G24K31/A1V

R900956574 4WREE10E25-2X/G24K31/F1V

R900949382 4WREE10E3-50-2X/G24K31/A1V

R900972424 4WREE10E3-75-2X/G24K31/A1V

R901356207 4WREE10E75-2X/G24K31/A1M

R901354781 4WREE10E75-2X/G24K31/F1M

R900967790 4WREE10EA25-2X/G24K31/A1V

R900927237 4WREE10Q2-50-2X/G24K31/A1V

R900927236 4WREE10Q2-75-2X/G24K31/A1V

R901028415 4WREE10R3-75-2X/G24K31/A1V

R901341484 4WREE10R3-75-2X/G24K31/F1V

R901037424 4WREE10R75-2X/G24K31/A1V

R900976334 4WREE10V1-25-2X/G24K31/F1V

R900972643 4WREE10V1-50-2X/G24K31/F1V

R900950902 4WREE10V1-75-2X/G24K31/A1V

R901400160 4WREE10V1-75-2X/G24K31/F1M

R900933075 4WREE10V25-2X/G24K31/A1V

R901305915 4WREE10V50-2X/G24K31/A1V-742

R900954104 4WRE10E1-75-2X/G24K4/V

R900960668 4WRE6E1-08-1X/24K4/M
