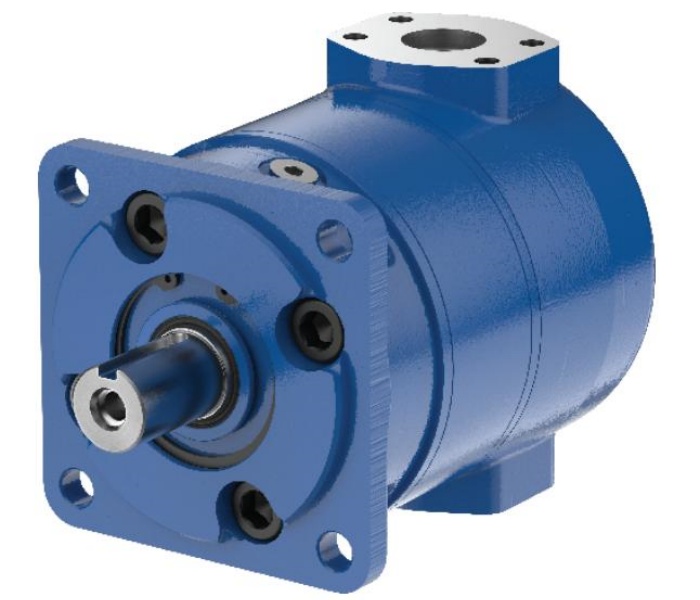

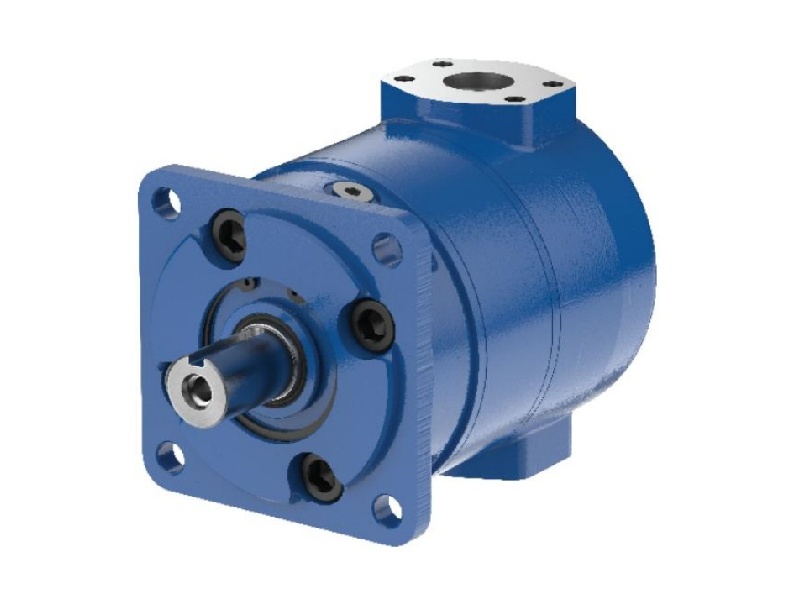

The Rexroth Rineer MV015 is a compact, medium-speed high-torque vane motor adopting patented vane-crossing-vane technology. Optimized for mobile and compact machinery, it delivers outstanding power-to-weight ratio for space-constrained heavy-duty hydraulic drive requirements.
This series is Code 61 only for 207 bar continuous working pressure. It covers 8 fixed-displacement rotary-group sizes from 98 cc to 246 cc/rev. Configurations include standard 2-port single rotary-group setup; special 4-port double rotary-group 2-speed variants are available via special housing ordering codes. Special 4-port double rotary-group variants (special housing ordering codes required) enable two-speed shifting with external valving; mixed-displacement combinations require additional logic circuit. It uses SAE-C flange dimensions for compact equipment retrofit.

Rexroth Rineer Vane Motor MV015 Key Features

Compact High Power-To-Weight Ratio: This Rexroth Rineer MV015 hydraulic vane motor outputs solid torque within a small footprint, well-suited for space-limited mobile hydraulic equipment.
Single-Pressure Code 61 Platform: Rated for 207 bar (3000 psi) continuous duty, matching most standard medium-pressure mobile hydraulic circuits.
2-Speed Function for 4-Port Models: 4-port double rotary-group vane motor achieves two-speed operation with external valving; mixed-displacement combinations require additional logic circuit. No extra gearbox needed.
Excellent Start and Stall Torque: Achieves up to 94 % of theoretical torque at zero rpm, performs reliably under full-load startup and frequent forward-reverse cycles.
Robust Internally-Balanced Structure: Hydraulically balanced rotating group reduces bearing induced loads, improves service life under varied field operating conditions.
Diverse Custom Shaft & Bearing Choices: Wide shaft portfolio including tapered wheel-motor shaft, hollow drill shaft and retractable splined shaft; multiple bearing sets handle different radial and thrust loads.

Rexroth Rineer Vane Motor MV015 Key Specifications

Motor Type: High torque vane motor with vane-crossing-vane design
Displacement Range: 98 - 246 cc/rev (6 - 15 in³/rev)
Maximum Continuous Pressure: 207 bar (3000 psi, Code 61)
Maximum Continuous Speed: 2000 rpm
Maximum Power Output: 150 HP (112 kW)
Mounting Standard: SAE C flange
Hydraulic Fluid: Mineral HL/HLP oil; special fluids available on request
Standard Seals: NBR as standard; FKM shaft seal available as option
Origin: Made in USA (Bosch Rexroth Rineer)

Rexroth Rineer Vane Motor MV015 Weight (approx.)

Motor Type	Weight (lbs)	Weight (kg)
30, 31 Shaft	47	21
32 Shaft	57	26
33 Shaft	45	20
49 Shaft	46	21
50 Shaft	64	29
53 Shaft	60	27

Rexroth Rineer Vane Motor MV015 Applications
This Rexroth Rineer MV015 high torque vane motor serves compact and mobile-focused hydraulic systems in multiple industries:
Mobile Construction Equipment: Compact auger drives, small drill power heads, auxiliary rotation drives for light-to-medium jobsite machinery.
Agricultural & Forestry Machinery: Harvester heads, wood shredders, screw feeder drives and other compact agricultural implement hydraulic drives.
Light-Duty Winches & Hoists: Small-size vehicle-mounted winches, compact hoisting mechanisms for mobile working equipment.
Special Drilling Equipment: Portable drill units, small mud agitators; hollow drill shaft option for compact direct-drive drilling setups.
Off-Highway Vehicle Auxiliary Drives: Conveyor drives, rotary actuators, fan drives and wheel-motor auxiliary hydraulic drives for space-restricted off-road and plant-mobile equipment.
Note: External radial / axial shaft loads must comply with selected bearing rating to avoid shortened service life.

Commonly Requested Material Numbers (MNR)
Below are Rexroth Rineer MV015 Vane Motor material numbers and models. If the MNR or model you require is not listed, please contact us freely.

MNR Model
R986V00153                   MV015-61-1S-015-32-T1-QB-041
R986V00154                   MV015-65-1S-006-30-B1-QB-000
R986V00155                   MV015-65-1S-010-30-B1-QB-000
R986V00156                   MV015-65-1S-013-30-B1-QB-000
R986V00157                   MV015-65-1S-015-30-B1-QB-000
R986V00158                   MV015-65-1S-021-31-B1-QB-055
R986V00159                   MV015-65-1S-022-31-B1-QB-000
R986V00160                   MV015-75-1S-013-31-B1-TB-000
R986V00161                   MV015-77-1S-013-31-B1-QB-000
R986V00162                   MV015-77-1S-015-31-B1-QB-000
R986V00163                   MV015-63-1S-013-30-B1-QB-000
R986V00164                   MV015-72-1S-010-31-B1-TB-000
R986V00165                   MV015-62-1S-011-31-B1-QB-055
R986V00166                   MV015-72-1S-011-30-B1-TB-000
R986V00167                   MV015-72-1S-013-31-B1-TB-000
R986V00168                   MV015-62-1S-015-30-B1-QB-000
R986V00169                   MV015-72-1S-013-30-B1-QB-000
R986V00170                   MV015-72-1S-015-31-B1-TB-000
R986V00171                   MV015-62-1S-006-30-B1-QB-000
R986V00172                   MV015-62-1S-008-31-B1-QB-088
R986V00173                   MV015-73-1S-013-31-B1-QB-000
R986V00174                   MV015-63-1S-006-31-B1-TB-000
R986V00175                   MV015-63-1S-009-31-B1-TB-000
R986V00180                   MV015-72-1S-006-31-B1-TB-000
R986V00181                   MV015-72-1S-007-31-B1-TB-000
R986V00182                   MV015-72-1S-009-30-B1-TB-000
R986V00183                   MV015-72-1S-011-31-B1-TB-000
R986V00184                   MV015-72-1S-011-31-B1-QB-000
R986V00185                   MV015-72-1S-013-30-B1-TB-000
R986V00186                   MV015-72-1S-013-31-B1-QB-000
R986V00187                   MV015-72-1S-015-30-B1-TB-000
R986V00188                   MV015-72-1S-015-31-B1-QB-000
R986V00189                   MV015-72-1S-015-31-B1-TV-000
R986V00190                   MV015-72-1S-175-31-B1-QB-000
R986V00191                   MV015-72-1S-024-31-B1-TB-000
R986V00192                   MV015-72-1S-007-31-B1-QB-000
R986V00193                   MV015-73-1S-005-31-B1-TB-000
R986V00194                   MV015-73-1S-013-31-B1-TB-000
R986V00195                   MV015-73-1S-015-31-B1-QB-000
R986V00196                   MV015-73-1S-015-31-B1-TB-000
R986V00197                   MV015-73-1S-009-31-B1-TB-000
R986V00198                   MV015-73-1S-009-31-B1-QB-000
R986V00200                   MV015-75-1S-010-31-B4-QB-094
R986V00201                   MV015-75-1S-014-31-B4-QB-094
R986V00202                   MV015-75-1S-014-30-B4-QB-094
R986V00203                   MV015-75-1S-015-31-B4-QB-094
R986V00204                   MV015-75-1S-015-30-B4-QB-094
R986V00205                   MV015-75-1S-021-31-B1-QB-055
R986V00206                   MV015-75-1S-026-31-B1-QB-000
R986V00207                   MV015-75-1S-030-31-B1-QB-000
R986V00208                   MV015-62-1S-007-31-B1-TB-000
R986V00209                   MV015-62-1S-010-31-B1-TB-000
R986V00210                   MV015-62-1S-006-31-B1-QB-000
R986V00211                   MV015-62-1S-010-31-B1-QB-000
R986V00212                   MV015-62-1S-011-30-B1-TB-000
R986V00213                   MV015-62-1S-011-30-B1-QB-000
R986V00215                   MV015-62-1S-011-31-B1-QB-000
R986V00216                   MV015-62-1S-011-31-B1-TB-000
R986V00217                   MV015-62-1S-012-31-B1-QB-000
R986V00218                   MV015-62-1S-013-30-B1-QB-000
R986V00219                   MV015-62-1S-013-30-B1-TV-000
R986V00220                   MV015-62-1S-013-31-B1-QB-000
R986V00221                   MV015-62-1S-013-31-B1-TB-000
R986V00222                   MV015-62-1S-014-31-B1-TB-000
R986V00223                   MV015-62-1S-014-31-B1-QB-000
R986V00224                   MV015-62-1S-015-30-B1-TB-000
R986V00225                   MV015-62-1S-015-31-B1-QB-052
R986V00226                   MV015-62-1S-015-31-B1-TV-000
R986V00227                   MV015-62-1S-015-31-B1-QB-000
R986V00228                   MV015-62-1S-015-31-B1-TB-000
R986V00229                   MV015-62-1S-015-32-T1-TB-000
R986V00230                   MV015-62-1S-019-31-B1-TV-000
R986V00231                   MV015-62-1S-022-31-B1-QB-000
R986V00232                   MV015-62-1S-005-31-B1-QB-000
R986V00233                   MV015-62-1S-007-31-B1-QB-000
R986V00234                   MV015-62-1S-008-31-B1-QB-000
R986V00235                   MV015-62-1S-006-31-B1-TB-000
R986V00236                   MV015-62-1S-008-31-B1-TB-000
R986V00237                   MV015-62-1S-009-30-B1-TB-000
R986V00238                   MV015-62-1S-009-31-B1-QB-000
R986V00239                   MV015-62-1S-009-31-B1-TB-000
R986V00241                   MV015-63-1S-011-31-B1-QB-000
R986V00242                   MV015-63-1S-013-31-B1-QB-000
R986V00245                   MV015-63-1S-015-31-B1-QB-000
R986V00246                   MV015-63-1S-011-31-B1-TB-045
R986V00247                   MV015-63-1S-015-31-B1-TB-000
R986V00248                   MV015-63-1S-009-31-B1-QB-000
R986V00249                   MV015-65-1S-006-30-B1-TB-000
R986V00250                   MV015-65-1S-006-31-B1-QB-000
R986V00251                   MV015-65-1S-015-30-B1-TB-000
R986V00252                   MV015-65-1S-010-31-B1-QB-000
R986V00253                   MV015-65-1S-011-31-B1-QB-000
R986V00254                   MV015-65-1S-013-31-B1-QB-000
R986V00255                   MV015-65-1S-015-31-B1-TB-000
R986V00256                   MV015-65-1S-015-31-B1-QB-000
R986V00257                   MV015-65-1S-015-32-T1-QB-000
R986V00258                   MV015-65-1S-024-31-B1-QB-000
R986V00259                   MV015-65-1S-265-31-B1-QB-000
R986V00260                   MV015-65-1S-030-31-B1-QB-000
R986V00261                   MV015-66-1S-015-31-B1-QB-000
R986V00262                   MV015-66-1S-010-31-B1-QB-000
R986V00263                   MV015-66-1S-008-31-B1-TB-000
R986V00264                   MV015-67-1S-010-31-B1-QB-000
R986V00265                   MV015-67-1S-013-31-B1-QB-000
R986V00266                   MV015-67-1S-015-31-B1-TB-000
R986V00267                   MV015-67-1S-015-31-B1-QB-000
R986V00268                   MV015-67-1S-006-30-B1-TB-000
R986V00269                   MV015-67-1S-008-30-B1-QB-000
R986V00270                   MV015-67-1S-008-31-B1-QB-000
R986V00271                   MV015-67-1S-008-31-B1-TB-000
R986V00272                   MV015-67-1S-009-31-B1-QB-000
R986V00273                   MV015-68-1S-013-31-B1-TB-000
R986V00838                   MV015-61-1S-006-30-B4-QV-029
R986V00839                   MV015-61-1S-006-52-B1-QB-080
R986V00840                   MV015-61-1S-009-52-B1-QB-080
R986V00845                   MV015-61-1S-010-52-B1-QB-080
R986V00846                   MV015-61-1S-013-52-B1-QB-080
R986V00847                   MV015-61-1S-015-31-B1-TV-000
R986V00848                   MV015-61-1S-015-49-B1-TB-000
R986V00850                   MV015-61-1S-009-30-B1-TV-000
R986V00853                   MV015-61-1S-010-32-T1-TB-000
R986V00855                   MV015-61-1S-010-30-B1-QB-000
R986V00856                   MV015-61-1S-010-30-B1-TB-000
R986V00858                   MV015-61-1S-010-31-B1-QB-000
R986V00859                   MV015-61-1S-010-43-B1-TB-105
R986V00860                   MV015-61-1S-010-31-B1-TB-000
R986V00861                   MV015-61-1S-010-53-T1-DB-084
R986V00864                   MV015-61-1S-011-30-B1-QB-000
R986V00865                   MV015-61-1S-011-30-B1-TB-000
R986V00866                   MV015-61-1S-011-30-B2-QB-099
R986V00867                   MV015-61-1S-011-49-B1-QB-000
R986V00868                   MV015-61-1S-011-31-B1-QB-000
R986V00869                   MV015-61-1S-011-49-B1-TB-000
R986V00870                   MV015-61-1S-011-31-B1-TB-000
R986V00872                   MV015-61-1S-011-32-T1-TB-000
R986V00875                   MV015-61-1S-013-30-B1-QB-000
R986V00876                   MV015-61-1S-013-30-B1-TB-000
R986V00878                   MV015-61-1S-013-30-B1-TV-000
R986V00879                   MV015-61-1S-013-52-B1-TB-080
R986V00881                   MV015-61-1S-013-31-B1-TB-016
R986V00882                   MV015-61-1S-013-31-B1-TV-000
R986V00883                   MV015-61-1S-013-49-B1-TB-000
R986V00884                   MV015-61-1S-013-31-B1-TB-000
R986V00886                   MV015-61-1S-013-31-B1-QB-000
R986V00887                   MV015-61-1S-013-31-B1-QV-000
R986V00888                   MV015-61-1S-013-32-T1-TB-000
R986V00890                   MV015-61-1S-015-32-T1-DB-084
R986V00891                   MV015-61-1S-015-33-B1-QB-000
R986V00892                   MV015-61-1S-015-34-B1-TB-000
R986V00893                   MV015-61-1S-015-30-B1-TB-000
R986V00894                   MV015-61-1S-015-30-B1-QB-000
R986V00896                   MV015-61-1S-015-30-B0-QB-070
R986V00897                   MV015-61-1S-015-30-B1-TV-000
R986V00902                   MV015-61-1S-015-50-B1-TB-000
R986V00903                   MV015-61-1S-015-37-B1-QB-096
R986V00905                   MV015-61-1S-015-31-B1-TB-000
R986V00907                   MV015-61-1S-015-31-B1-TB-029
R986V00909                   MV015-61-1S-015-31-B1-QB-000
R986V00910                   MV015-61-1S-015-31-B1-TB-016
R986V00911                   MV015-61-1S-015-32-T1-TB-000
R986V00912                   MV015-61-1S-015-32-T1-QB-000
R986V00913                   MV015-61-1S-016-31-B1-QB-085
R986V00915                   MV015-61-1S-019-31-B1-TV-000
R986V00916                   MV015-61-1S-021-31-B1-QB-000
R986V00917                   MV015-61-1S-023-31-B1-QB-000
R986V00918                   MV015-61-1S-026-31-B1-QB-000
R986V00919                   MV015-61-1S-030-31-B1-QB-000
R986V00923                   MV015-61-1S-005-30-B1-TB-000
R986V00924                   MV015-61-1S-005-30-B1-QB-000
R986V00925                   MV015-61-1S-005-30-B2-QB-027
R986V00927                   MV015-61-1S-005-30-B1-QB-040
R986V00928                   MV015-61-1S-005-31-B1-TB-000
R986V00929                   MV015-61-1S-005-31-B1-QB-000
R986V00932                   MV015-61-1S-006-33-B1-QB-000
R986V00933                   MV015-61-1S-006-34-B1-TB-000
R986V00934                   MV015-61-1S-006-30-B1-TB-000
R986V00935                   MV015-61-1S-006-30-B1-QB-000
R986V00938                   MV015-61-1S-015-52-B1-QB-080
R986V00940                   MV015-61-1S-006-30-B1-TB-040
R986V00941                   MV015-61-1S-006-31-B1-QB-000
R986V00942                   MV015-61-1S-006-49-B1-QB-000
R986V00943                   MV015-61-1S-006-31-B1-TV-000
R986V00944                   MV015-61-1S-006-49-B1-TB-000
R986V00945                   MV015-61-1S-006-31-B1-TB-000
R986V00947                   MV015-61-1S-006-31-B1-TB-029
R986V00948                   MV015-61-1S-006-31-B1-QV-000
R986V00950                   MV015-61-1S-006-32-T1-TB-000
R986V00952                   MV015-61-1H-006-32-T1-QB-054
R986V00953                   MV015-61-1S-007-30-B1-TB-000
R986V00955                   MV015-61-1S-007-50-B1-TB-000
R986V00956                   MV015-61-1S-007-49-B1-QB-000
R986V00957                   MV015-61-1S-007-49-B1-QB-102
R986V00958                   MV015-61-1S-007-31-B1-QB-000
R986V00959                   MV015-61-1S-007-31-B1-TV-000
R986V00960                   MV015-61-1S-007-49-B1-TB-000
R986V00961                   MV015-61-1S-007-31-B1-TB-000
R986V00962                   MV015-61-1S-007-31-B1-TB-015
R986V00965                   MV015-61-1S-007-32-T1-TB-000
R986V00966                   MV015-61-1S-007-32-T1-DB-084
R986V00967                   MV015-61-1S-007-30-B1-QB-000
R986V00968                   MV015-61-1S-007-52-B1-QB-080
R986V00969                   MV015-61-1S-008-33-B1-QB-000
R986V00970                   MV015-61-1S-008-30-B1-TB-000
R986V00971                   MV015-61-1S-008-30-B1-QB-000
R986V00972                   MV015-61-1S-008-30-B1-TB-040
R986V00973                   MV015-61-1S-008-50-B1-TB-000
R986V00974                   MV015-61-1S-008-31-B1-QB-000
R986V00976                   MV015-61-1S-008-49-B1-TB-000
R986V00977                   MV015-61-1S-008-31-B1-TB-000
R986V00978                   MV015-61-1S-008-31-B1-TB-029
R986V00979                   MV015-61-1S-008-31-B1-TB-016
R986V00980                   MV015-61-1S-008-32-T1-TB-000
R986V00982                   MV015-61-1S-008-53-T1-DB-084
R986V00983                   MV015-61-1S-009-30-B1-QB-000
R986V00984                   MV015-61-1S-009-31-B1-TV-000
R986V00985                   MV015-61-1S-009-49-B1-TB-000
R986V00987                   MV015-61-1S-009-33-B1-QB-000
R986V00988                   MV015-61-1S-009-30-B1-TB-000
R986V00990                   MV015-61-1S-009-31-B1-QB-000
R986V00991                   MV015-61-1S-009-50-B1-QB-000
R986V00992                   MV015-61-1S-009-50-B1-TB-000
R986V00993                   MV015-61-1S-009-31-B1-TB-000
R986V00995                   MV015-61-1S-009-31-B4-QB-075
R986V00996                   MV015-61-1S-009-31-B1-TB-044
R986V00997                   MV015-61-1S-009-31-B1-TB-016
R986V00998                   MV015-61-1S-009-32-T1-TB-000
R986V03995                   MV015-67-1S-013-31-B1-TB-000
R986V04019                   MV015-61-1S-010-30-B1-TV-000
R986V04098                   MV015-61-1S-015-53-T1-DB-084
R986V04125                   MV015-65-1S-009-31-B1-QB-000
R986V04127                   MV015-63-1S-007-31-B1-QB-000
R986V04160                   MV015-62-1S-006-30-B1-TB-000
R986V04268                   MV015-61-1S-019-31-B1-QB-000
R986V04422                   MV015-75-1S-009-31-B1-QB-000
R986V04423                   MV015-75-1S-024-31-B1-QB-000
R986V04446                   MV015-61-1S-007-53-T1-DB-084
R986V04493                   MV015-61-1S-006-30-B1-TV-000
R986V04499                   MV015-61-1S-013-33-B1-QB-000
R986V04501                   MV015-61-1H-009-31-B1-QB-000
R986V04515                   MV015-75-1S-015-31-B4-QB-075
R986V04518                   MV015-63-1S-015-30-B1-TB-000
R986V04520                   MV015-63-1H-010-31-B1-QB-000
R986V04523                   MV015-61-1S-024-31-B1-QB-000
R986V04530                   MV015-61-1S-013-30-B1-TB-016
R986V04537                   MV015-65-1S-007-31-B1-QB-000
R986V04543                   MV015-61-1H-013-31-B1-QB-000
R986V04545                   MV015-61-1S-006-30-B1-TB-029
R986V04556                   MV015-61-1S-015-49-B1-TB-108
R986V04561                   MV015-61-1S-011-31-B1-TV-000
R986V04563                   MV015-63-1H-013-31-B1-QB-000
R986V04565                   MV015-61-1S-015-31-B1-QB-000
R986V04568                   MV015-63-1S-017-31-B1-QB-000
R986V04574                   MV015-61-1S-015-31-B1-QB-073
R986V04578                   MV015-72-1S-016-31 B4-QB-000
R986V04593                   MV015-75-1S-016-31 B4-QB-000
R986V04704                   MV015-61-1S-010-49-B1-TB-000
R986V04711                   MV015-61-1S-007-30-B1-TV-000
R986V04713                   MV015-61-1S-015-30-B1-QV-000
R986V04720                   MV015-75-1S-024-31-B1-QB-000

Share your thoughts with us today! Showing 6 of 0 reviews

Most recent

Top Reviews

Your rating

Your review *

Name *

Enter your Name

Email *

Enter your Email

Upload Image

Notice: Ensure your image is no larger than 200KB before uploading.

Submit
