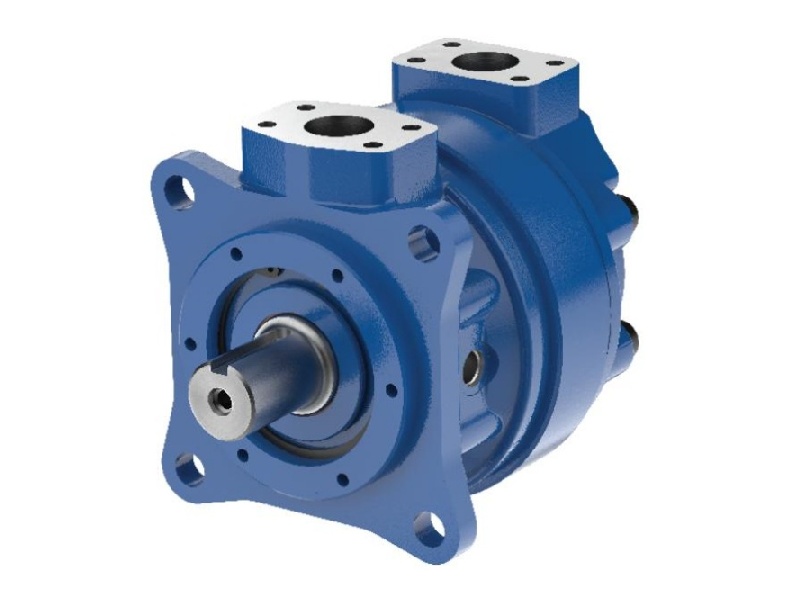

The Rexroth Rineer MV037 is a medium-speed, high-torque vane motor featuring patented vane-crossing-vane technology, delivering outstanding power-to-weight ratio and smooth operation across a wide speed range. It is the most widely specified general-purpose model in the Rineer high torque vane motor line, designed for reliable heavy-duty performance in compact installation spaces.
This series offers two factory-rated pressure tiers: standard Code 61 (A version) for 207 bar continuous duty, and high-performance Code 62 (D version) for 310 bar continuous operation with up to 50% higher torque. It is available in 2-port single-speed, 2-port double-stack and 4-port multi-speed configurations, covering displacements from 197 cc to 1213 cc. All models conform to SAE 'D' mounting standards for direct drop-in replacement.

Rexroth Rineer Vane Motor MV037 Key Features

Patented Vane-Crossing-Vane Technology – This Rexroth Rineer MV037 high torque vane motor adopts proprietary vane crossing vane design for consistent output, low torque ripple and superior mechanical & volumetric efficiency.
Dual Code Pressure Ratings – Available in standard Code 61 (207 bar / 3000 psi) and high-performance Code 62 (310 bar / 4500 psi) versions to match diverse system pressure requirements.
Flexible 4-Port Multi-Speed Design – Offered in 2-port and 4-port vane motor configurations; 4-port models support 2-speed operation with external valving; 3-speed function requires special rotary-group & custom logic circuit for flexible speed-torque adjustment.
Exceptional High Starting Torque – Delivers up to 94% of theoretical torque at zero rpm, making it a reliable low speed high torque motor for heavy-load start-up and frequent reverse cycles.
Heavy-Duty Contamination Resistance – All-hardened steel construction gives this hydraulic vane motor strong tolerance to fluid contamination, dynamic braking and overrunning loads.
Standard SAE D Drop-In Mounting – SAE 'D' flange interface enables direct drop-in replacement for existing SAE D mount hydraulic motors without mounting modifications.

Rexroth Rineer Vane Motor MV037 Key Specifications

Motor Type: High torque vane motor with vane-crossing-vane design
Displacement Range: 197 – 1213 cc/rev (12 – 74 in³/rev)
Maximum Continuous Pressure: 207 bar (3000 psi, Code 61); 310 bar (4500 psi, Code 62)
Maximum Continuous Speed: 1000 rpm
Maximum Power Output: 450 HP (336 kW)
Mounting Standard: SAE D flange (SAE J744)
Hydraulic Fluid: Mineral HL/HLP oil; special fluids available on request
Standard Seals: NBR for Code 61 (FKM optional); Code 62 utilises Disogrin polyurethane main-body O-rings, FKM shaft seal available as option.
Origin: Made in USA (Bosch Rexroth Rineer)

Rexroth Rineer Vane Motor MV037 Weight (approx.)

Motor Type	Weight (lbs)	Weight (kg)
Code 61, 2-port	97	44
Code 61, 4-port	171	77
Code 62, 2-port	100	45
Code 62, 4-port	183	83

Approximate weights for standard shaft configurations; actual weight varies by shaft & bearing option.

Rexroth Rineer Vane Motor MV037 Applications
The MV037 series high torque vane motor is the preferred drive solution for medium-duty hydraulic systems across a wide range of industries:
Construction & Mining Equipment – Ideal for auger drives, roof bolters, directional drill power heads and feeder mixers, with high starting torque and contamination resistance for jobsite conditions.
Winches & Hoists – Compact high-torque solution for small to medium winches and hoisting mechanisms, with excellent compatibility for dynamic braking circuits.
Industrial Machinery – Provides stable drive for injection molding screw drives, planer table drives, rotary indexing tables and pump drives with low torque ripple.
Oilfield Equipment – Suitable for power tongs, mud agitators and auxiliary top drives, with available API threaded shafts and heavy-duty bearing options.
Marine & Offshore – Robust construction for bow thrusters, deck winches and auxiliary machinery drives, with optional seal upgrades for special fluid compatibility.
Material Handling – Delivers smooth speed regulation and reliable torque for belt conveyors, screw conveyors, feeder mixers and bucket elevator drives.
Note: External radial / axial shaft loads must comply with selected bearing rating to avoid shortened service life.

Commonly Requested Material Numbers (MNR)
Below are Rexroth Rineer MV037 Vane Motor material numbers and models. If the MNR or model you require is not listed, please contact us freely.

MNR Model
R986V00278                   MV037-A2-1H-016-31-B1-TBB-103
R986V00294                   MV037-A2-1L-020-35-B1-TBB-000
R986V00295                   MV037-A2-1L-020-35-B1-QBB-000
R986V00305                   MV037-A2-1S-010-31-B1-TBB-000
R986V00313                   MV037-A2-1S-012-53-T1-QBB-082
R986V00314                   MV037-A2-1S-012-31-B1-TBB-000
R986V00332                   MV037-A2-1S-016-30-B3-TBB-051
R986V00334                   MV037-A2-1S-016-31-B1-TBB-000
R986V00342                   MV037-A2-1S-020-31-B1-QBB-000
R986V00352                   MV037-A2-1S-026-40-B1-TBB-025
R986V00353                   MV037-A2-1S-026-31-B1-QBB-000
R986V00354                   MV037-A2-1S-026-36-B1-TVV-085
R986V00356                   MV037-A2-1S-032-30-B3-TBB-051
R986V00360                   MV037-A2-1S-032-30-B1-QBB-000
R986V00361                   MV037-A2-1S-032-31-B1-QBB-000
R986V00362                   MV037-A2-1S-032-36-B1-TVV-085
R986V00364                   MV037-A2-1S-037-31-B3-TBB-051
R986V00365                   MV037-A2-1S-037-30-B1-QBB-000
R986V00366                   MV037-A2-1S-037-31-B1-QBB-000
R986V00372                   MV037-A2-1S-074-33-B1-QBB-000
R986V00379                   MV037-A2-1H-012-31-B1-TVD-000
R986V00380                   MV037-A2-1H-020-30-B1-TVD-000
R986V00381                   MV037-A2-1H-020-31-B1-TVD-000
R986V00382                   MV037-A2-1H-026-30-B1-TBB-000
R986V00383                   MV037-A2-1H-026-30-B1-TVD-000
R986V00385                   MV037-A2-1H-032-31-B1-TVD-000
R986V00387                   MV037-A2-1H-032-30-B1-TVD-000
R986V00388                   MV037-A2-1H-037-30-B1-TVD-000
R986V00389                   MV037-A2-1H-037-31-B1-TBB-000
R986V00403                   MV037-A2-1S-012-34-B1-TBB-000
R986V00405                   MV037-A2-1S-012-30-B1-TBB-000
R986V00406                   MV037-A2-1S-012-30-B1-QBB-000
R986V00407                   MV037-A2-1S-012-30-B1-TVV-000
R986V00408                   MV037-A2-1S-012-41-B2-TBB-000
R986V00409                   MV037-A2-1S-012-35-B1-TBB-000
R986V00410                   MV037-A2-1S-012-36-B1-TBB-000
R986V00419                   MV037-A2-1S-016-34-B1-TBB-000
R986V00420                   MV037-A2-1S-016-40-B1-TBB-000
R986V00421                   MV037-A2-1S-016-30-B1-TBB-000
R986V00432                   MV037-A2-1S-020-34-B1-TBB-000
R986V00433                   MV037-A2-1S-020-33-B1-QBB-000
R986V00435                   MV037-A2-1S-020-30-B1-TBB-000
R986V00436                   MV037-A2-1S-020-30-B1-QBB-000
R986V00437                   MV037-A2-1S-020-30-B1-TVV-000
R986V00439                   MV037-A2-1S-020-31-B0-QBB-086
R986V00441                   MV037-A2-1S-020-31-B1-TBB-000
R986V00442                   MV037-A2-1S-020-35-B1-TBB-000
R986V00446                   MV037-A2-1S-026-34-B1-TBB-000
R986V00447                   MV037-A2-1S-026-34-B1-TVV-000
R986V00451                   MV037-A2-1S-026-30-B1-TBB-000
R986V00452                   MV037-A2-1S-026-30-B1-QBB-000
R986V00454                   MV037-A2-1S-026-31-B1-TBB-000
R986V00455                   MV037-A2-1S-026-31-B1-TVV-000
R986V00456                   MV037-A2-1S-032-41-B2-TBB-000
R986V00457                   MV037-A2-1S-026-41-B2-TBB-000
R986V00458                   MV037-A2-1S-026-35-B1-TBB-000
R986V00459                   MV037-A2-1S-026-53-T1-QBB-082
R986V00461                   MV037-A2-1S-032-34-B1-TBB-000
R986V00462                   MV037-A2-1S-032-34-B1-TVV-000
R986V00463                   MV037-A2-1S-032-33-B1-QBB-000
R986V00466                   MV037-A2-1S-032-30-B1-TBB-000
R986V00467                   MV037-A2-1S-032-30-B1-TVV-000
R986V00469                   MV037-A2-1S-032-31-B1-TBB-000
R986V00470                   MV037-A2-1S-032-31-B3-TBB-076
R986V00472                   MV037-A2-1S-032-35-B1-QBB-000
R986V00473                   MV037-A2-1S-037-42-B1-TBB-114
R986V00475                   MV037-A2-1S-037-34-B1-TBB-000
R986V00476                   MV037-A2-1S-037-33-B1-QBB-000
R986V00477                   MV037-A2-1S-037-30-B1-TBB-000
R986V00480                   MV037-A2-1S-037-31-B1-TBB-000
R986V00481                   MV037-A2-1S-037-31-B1-TVV-000
R986V00482                   MV037-A2-1S-037-41-B2-TBB-000
R986V00483                   MV037-A2-1L-037-41-B2-TBB-000
R986V00484                   MV037-A2-1S-037-35-B1-QBB-000
R986V00485                   MV037-A2-1S-037-36-B1-TBB-000
R986V00505                   MV037-A2-1S-069-33-B1-QBB-000
R986V00520                   MV037-A2-1L-012-35-B1-TBB-000
R986V00524                   MV037-A2-1L-016-35-B1-TBB-000
R986V00529                   MV037-A2-1L-026-30-B1-QBB-000
R986V00530                   MV037-A2-1L-026-31-B1-QBB-000
R986V00531                   MV037-A2-1L-020-31-B1-TBB-000
R986V00532                   MV037-A2-1L-026-31-B1-TBB-000
R986V00533                   MV037-A2-1L-026-35-B1-TBB-000
R986V00534                   MV037-A2-1L-032-30-B1-TBB-000
R986V00535                   MV037-A2-1L-032-31-B1-TBB-000
R986V00536                   MV037-A2-1L-032-35-B1-TBB-000
R986V00537                   MV037-A2-1L-037-30-B1-TBB-000
R986V00538                   MV037-A2-1L-037-35-B1-TBB-000
R986V00560                   MV037-A4-1S-057-31-B3-QBB-000
R986V00561                   MV037-A4-1S-058-31-B3-TBB-000
R986V00562                   MV037-A4-1S-064-31-B3-TBB-000
R986V00563                   MV037-A4-1S-074-31-B3-TBB-000
R986V00568                   MV037-A4-1H-058-31-B3-TVD-000
R986V00572                   MV037-A4-1S-032-31-B3-TBB-000
R986V00573                   MV037-A4-1S-032-31-B3-QBB-000
R986V00574                   MV037-A4-1S-036-31-B3-TBB-000
R986V00575                   MV037-A4-1S-040-31-B3-TBB-000
R986V00576                   MV037-A4-1S-040-31-B3-QBB-000
R986V00577                   MV037-A4-1S-046-31-B3-TBB-000
R986V00578                   MV037-A4-1S-052-31-B3-TBB-000
R986V00579                   MV037-A4-1S-064-31-B3-QBB-000
R986V00580                   MV037-A4-1S-074-31-B3-QBB-000
R986V00586                   MV037-C2-1L-032-31-B1-TBB-000
R986V00593                   MV037-C2-1S-020-35-B1-TBB-000
R986V00608                   MV037-C2-1S-012-31-B1-QBB-000
R986V00609                   MV037-C2-1S-012-41-B2-TBB-000
R986V00610                   MV037-C2-1S-012-35-B1-TVV-000
R986V00611                   MV037-C2-1S-012-36-B1-TBB-000
R986V00614                   MV037-C2-1S-016-30-B1-TBB-000
R986V00615                   MV037-C2-1S-020-30-B3-TBB-110
R986V00616                   MV037-C2-1S-020-34-B1-TBB-000
R986V00617                   MV037-C2-1S-020-30-B1-TBB-000
R986V00619                   MV037-C2-1S-020-41-B2-TBB-000
R986V00621                   MV037-C2-1S-026-40-B1-TBB-000
R986V00622                   MV037-C2-1S-026-30-B1-TBB-000
R986V00623                   MV037-C2-1S-026-31-B1-TBB-000
R986V00624                   MV037-C2-1S-032-33-B1-QBB-000
R986V00625                   MV037-C2-1S-032-33-B1-QVV-008
R986V00626                   MV037-C2-1S-032-30-B1-TBB-000
R986V00627                   MV037-C2-1S-032-31-B1-TBB-000
R986V00628                   MV037-C2-1S-032-31-B1-QBB-000
R986V00629                   MV037-C2-1S-032-35-B1-TBB-000
R986V00630                   MV037-C2-1S-032-35-B1-QBB-000
R986V00632                   MV037-C2-1S-037-34-B1-TBB-000
R986V00633                   MV037-C2-1S-037-30-B1-TBB-000
R986V00634                   MV037-C2-1S-037-30-B1-QBB-000
R986V00635                   MV037-C2-1S-037-31-B1-TBB-000
R986V00636                   MV037-C2-1S-037-35-B1-TBB-000
R986V00648                   MV037-C2-1L-016-30-B1-TBB-000
R986V00649                   MV037-C2-1L-020-30-B1-TBB-000
R986V00650                   MV037-C2-1L-026-30-B1-TBB-000
R986V00651                   MV037-C2-1L-032-30-B1-TBB-000
R986V00653                   MV037-C2-1L-037-30-B1-TBB-000
R986V00655                   MV037-D2-2S-012-30-T1-QVD-000
R986V00656                   MV037-D2-2S-012-31-T1-QVD-000
R986V00658                   MV037-D2-2S-016-30-T1-QVD-000
R986V00660                   MV037-D2-2S-016-53-T4-TVD-000
R986V00664                   MV037-D2-2S-026-31-B3-TVD-129
R986V00665                   MV037-D2-2S-026-53-T4-TVD-000
R986V00667                   MV037-D2-2S-037-31-T1-QVD-000
R986V00670                   MV037-D2-2S-037-53-T4-TVD-000
R986V00671                   MV037-D2-2S-037-53-T4-QVD-000
R986V00683                   MV037-D2-2S-012-31-B1-TVD-112
R986V00684                   MV037-D2-2S-012-31-B1-TVD-136
R986V00686                   MV037-D2-2S-012-31-T1-TVD-000
R986V00688                   MV037-D2-2S-016-30-B3-TVD-051
R986V00691                   MV037-D2-2S-016-31-B1-TVD-136
R986V00692                   MV037-D2-2S-016-31-T1-TVD-000
R986V00693                   MV037-D2-2S-020-31-B1-TVD-112
R986V00694                   MV037-D2-2S-020-31-B1-0VD-125
R986V00695                   MV037-D2-2S-020-31-B1-TVD-136
R986V00696                   MV037-D2-2S-020-30-T1-TVD-141
R986V00697                   MV037-D2-2S-020-30-T1-TVD-127
R986V00698                   MV037-D2-2S-020-30-T1-TVD-105
R986V00699                   MV037-D2-2S-020-31-T1-TVD-000
R986V00701                   MV037-D2-2S-020-32-T1-TVD-000
R986V00702                   MV037-D2-2S-026-31-T1-TVD-000
R986V00704                   MV037-D2-2S-026-31-B1-TVD-136
R986V00706                   MV037-D2-2S-026-32-T1-TVD-000
R986V00709                   MV037-D2-2S-032-31-B3-TVD-051
R986V00710                   MV037-D2-2S-032-31-B1-TVD-112
R986V00713                   MV037-D2-2S-032-30-T1-TVD-105
R986V00714                   MV037-D2-2S-032-31-T1-TVD-000
R986V00720                   MV037-D2-2S-037-31-T1-TVD-000
R986V00721                   MV037-D2-2S-052-31-T1-TVD-000
R986V00722                   MV037-D2-2S-074-31-T1-TVD-000
R986V00723                   MV037-D2-2S-016-30-T1-TVD-000
R986V00724                   MV037-D2-2S-020-30-T1-TVD-000
R986V00725                   MV037-D2-2S-026-30-T1-TVD-000
R986V00726                   MV037-D2-2S-026-31-T1-QVD-000
R986V00727                   MV037-D2-2L-032-31-T1-TVD-000
R986V00728                   MV037-D2-2S-037-30-T1-TVD-000
R986V00730                   MV037-D4-2H-040-31-T1-TVD-000
R986V00732                   MV037-D4-2S-032-53-T4-TVD-000
R986V00734                   MV037-D4-2S-040-53-T4-TVD-000
R986V00735                   MV037-D4-2S-040-53-T4-QVD-000
R986V00736                   MV037-D4-2S-052-53-T4-TVD-000
R986V00739                   MV037-D4-2S-074-53-T4-TVD-000
R986V00740                   MV037-D4-2S-074-53-T5-TVD-083
R986V00741                   MV037-D4-2S-074-53-T5-TVD-000
R986V00746                   MV037-D4-2S-024-31-T1-TVD-000
R986V00747                   MV037-D4-2S-024-31-T1-QVD-000
R986V00749                   MV037-D4-2S-028-31-T1-TVD-000
R986V00750                   MV037-D4-2S-028-31-T1-QVD-000
R986V00752                   MV037-D4-2S-032-31-T1-QVD-122
R986V00753                   MV037-D4-2S-032-31-T1-TVD-000
R986V00754                   MV037-D4-2S-032-31-T1-QVD-000
R986V00755                   MV037-D4-2S-040-31-T1-QVD-123
R986V00756                   MV037-D4-2S-040-31-T1-QVD-000
R986V00757                   MV037-D4-2S-049-31-T1-QVD-000
R986V00758                   MV037-D4-2S-052-31-T1-TVD-000
R986V00759                   MV037-D4-2S-052-31-T1-QVD-000
R986V00760                   MV037-D4-2S-057-31-T1-TVD-000
R986V00762                   MV037-D4-2S-064-31-T1-QVD-000
R986V00763                   MV037-D4-2S-074-31-T1-QVD-000
R986V00764                   MV037-D4-2S-074-31-T1-TVD-000
R986V03271                   MV037-A2-1S-020-31-B1-QBB-075
R986V03272                   MV037-A2-1S-026-30-B1-TVV-000
R986V03273                   MV037-A2-1S-032-34-B1-QBB-000
R986V03274                   MV037-C2-1S-026-34-B1-TBB-000
R986V03275                   MV037-D2-2S-016-31-B1-TVD-112
R986V03631                   MV037-A4-1S-024-31-B3-TBB-000
R986V03643                   MV037-A2-1L-012-40-B1-QBB-000
R986V03999                   MV037-A2-1S-037-35-B1-TBB-000
R986V04010                   MV037-A4-1S-052-31-B3-QBB-000
R986V04046                   MV037-A2-1S-012-43-B1-TBB-143
R986V04118                   MV037-D4-2S-053-53-T5-TVD-000
R986V04143                   MV037-A2-1S-037-30-B3-TBB-144
R986V04147                   MV037-D2-2S-032-30-T1-TVD-000
R986V04157                   MV037-D2-2S-032-36-B0-TVD-130
R986V04200                   MV037-D4-2S-024-53-T4-TVD-000
R986V04224                   MV037-D2-2S-016-32-T1-TVD-000
R986V04231                   MV037-D2-2S-020-53-T4-TVD-000
R986V04250                   MV037-D4-2S-064-53-T4-TVD-000
R986V04258                   MV037-A2-1S-016-41-B2-TBB-000
R986V04274                   MV037-A4-1S-044-31-B3-TBB-000
R986V04276                   MV037-C2-1S-012-40-B1-TBB-000
R986V04279                   MV037-A4-1S-049-31-B3-TBB-000
R986V04334                   MV037-C2-1S-032-53-T1-QBB-145
R986V04340                   MV037-A2-1S-016-30-B1-QBB-000
R986V04342                   MV037-A2-1S-037-31-B1-TBB-146
R986V04403                   MV037-D4-2S-046-31-T1-TVD-000
R986V04411                   MV037-C2-1S-026-35-B1-TBB-000
R986V04416                   MV037-D2-2H-016-31-B1-TVD-103
R986V04418                   MV037-D4-2S-058-31-T1-TVD-000
R986V04424                   MV037-A2-1S-016-31-B1-QBB-000
R986V04425                   MV037-D4-2S-040-31-T1-TVD-000
R986V04433                   MV037-D2-2S-012-53-T4-TVD-000
R986V04437                   MV037-D4-2S-036-31-T1-TVD-000
R986V04438                   MV037-D2-2S-032-31-T1-QVD-000
R986V04444                   MV037-A2-1S-037-44-B2-TBB-000
R986V04447                   MV037-D4-2S-038-31-T1-TVD-000
R986V04451                   MV037-A2-1S-026-30-B1-TBB-900
R986V04459                   MV037-A4-1S-069-31-B3-TBB-000
R986V04469                   MV037-D2-2S-026-30-T1-TVD-127
R986V04474                   MV037-D2-2S-016-30-T1-TVD-150
R986V04487                   MV037-D2-2S-020-31-T1-QVD-000
R986V04489                   MV037-A2-1S-026-33-B1-QBB-000
R986V04492                   MV037-A2-1S-026-34-B1-QBB-000
R986V04500                   MV037-D2-2S-020-31-B1-0VD-152
R986V04502                   MV037-A2-1S-020-31-B1-TBB-000
R986V04516                   MV037-A2-1S-064-30-B3-TBB-000
R986V04522                   MV037-A4-1S-048-31-B3-TBB-000
R986V04534                   MV037-D4-2S-040-31-T1-TVD-124
R986V04541                   MV037-D2-2S-032-32-T1-TVD-000
R986V04542                   MV037-C2-1S-016-31-B1-TBB-000
R986V04551                   MV037-A2-1H-037-31-B1-TBB-000S
R986V04554                   MV037-A2-1S-032-42-B1-TBB-153
R986V04559                   MV037-A2-1S-037-30-B1-TBB-000S
R986V04577                   MV037-A2-1S-032-36-B1-TBB-000
R986V04580                   MV037-A2-1S-026-30-B1-0BB-000
R986V04581                   MV037-A2-1S-032-30-B1-0BB-000
R986V04582                   MV037-A2-1S-037-30-B1-0BB-000
R986V04596                   MV037-D4-2S-064-31-T1-TVD-000
R986V04599                   MV037-D2-2S-032-53-T4-TVD-000
R986V04712                   MV037-D2-2S-026-31-B1-TVD-112
R986V04723                   MV037-D2-2S-026-31-B1-0VD-155

Share your thoughts with us today! Showing 6 of 0 reviews

Most recent

Top Reviews

Your rating

Your review *

Name *

Enter your Name

Email *

Enter your Email

Upload Image

Notice: Ensure your image is no larger than 200KB before uploading.

Submit
