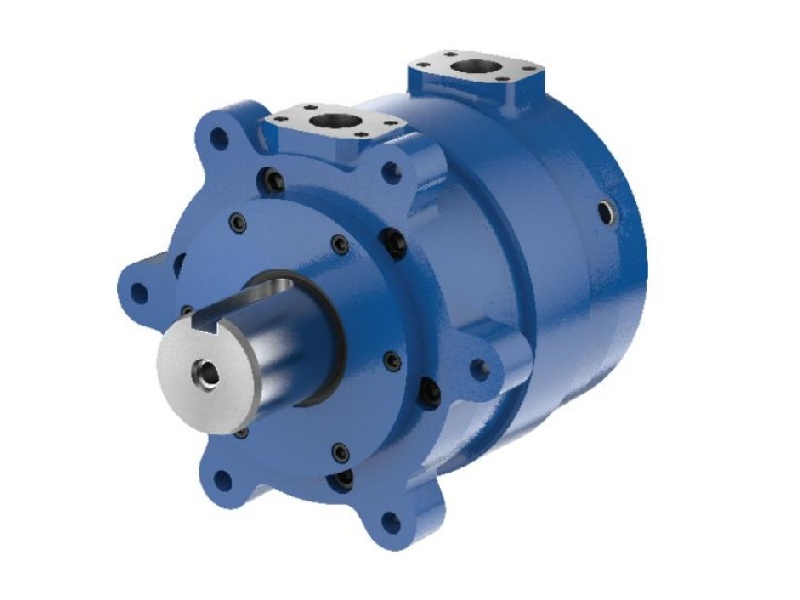

Rineer High Torque Vane Motor MV125
New and Original, Official Guarantee, Stable Performance, Made in USA
Description
Reviews
Download:
Rexroth Rineer Vane Motor MV125 Overview
The Rexroth Rineer MV125 is an extra-heavy-duty low-speed high-torque vane motor built on patented vane-crossing-vane technology. Designed for extreme torque-demanding applications, it delivers massive output with competitive power-to-weight ratio under continuous severe working cycles.
This series provides two pressure grades: standard Code 61 (A-version) rated for 207 bar continuous duty and high-performance Code 62 (H-version) for 310 bar continuous pressure. Displacement ranges from 983 cc to 4097 cc/rev. Configurations include 2-port single rotary-group, 2-port double-stack and 4-port double-rotary-group units. 4-port units support 2-speed or 3-speed operation with external valving. Equal-displacement rotary groups work with series-parallel circuits; mixed-displacement combinations require additional logic circuit. It uses heavy-duty special large-size flange for heavy-equipment retrofit.
Approximate base-model weights. Shaft variants, double-stack and SAE 24 options change weight. Refer to datasheet for full weight data.
Rexroth Rineer Vane Motor MV125 Applications
This Rexroth Rineer MV125 high torque vane motor serves ultra-high-load hydraulic systems across multiple industries:
Oilfield Equipment: Big-bore power tongs, casing handling tools, mud agitators and auxiliary top drives. API hollow drill shaft and high-thrust bearing options suit harsh upstream field conditions.
Winches & Hoists: Industrial and offshore deck winches, suited for extreme pulling loads and dynamic-braking cycles.
Mining & Heavy Construction: Oversized auger drives, robust drill power heads and high-capacity feeder mixers for rugged mine jobsites.
Industrial Processing Machinery: Large rotary indexing tables, bulk-material processing drives and high-power pump drives requiring low-ripple smooth rotation.
Marine & Bulk Material Handling: Deck machinery, heavy-duty screw and belt conveyors for high-volume mineral-processing plants.
Note: External radial / axial shaft loads must comply with selected bearing rating to avoid shortened service life.
Commonly Requested Material Numbers (MNR)
Below are Rexroth Rineer MV125 Vane Motor material numbers and models. If the MNR or model you require is not listed, please contact us freely.
MNR Model
R986V00276 MV125-A2-1H-113-31-B1-TBB-160
R986V00277 MV125-A2-1H-113-31-B1-TBB-000
R986V00280 MV125-A2-1H-082-31-B1-TBB-000
R986V00281 MV125-A2-1H-098-30-B1-TBB-000
R986V00282 MV125-A2-1H-098-31-B1-TBB-160
R986V00283 MV125-A2-1H-098-31-B1-TBB-000
R986V00286 MV125-A2-1L-082-35-B2-TBB-000
R986V00287 MV125-A2-1L-060-30-B1-TBB-000
R986V00288 MV125-A2-1L-098-30-B1-TBB-000
R986V00289 MV125-A2-1L-098-30-B1-PVV-000
R986V00290 MV125-A2-1L-098-35-B2-TBB-000
R986V00292 MV125-A2-1L-125-35-B2-TBB-000
R986V00296 MV125-A2-1L-211-31-B1-TBB-000
R986V00297 MV125-A2-1L-250-30-B1-TBB-000
R986V00304 MV125-A2-1S-060-31-B1-TBB-000
R986V00306 MV125-A2-1S-113-34-B1-TBB-000
R986V00307 MV125-A2-1S-113-30-B1-TBB-000
R986V00309 MV125-A2-1S-113-31-B1-TBB-160
R986V00310 MV125-A2-1S-113-31-B1-TBB-000
R986V00311 MV125-A2-1S-113-35-B2-PVV-000
R986V00312 MV125-A2-1S-113-53-T1-DBB-157
R986V00316 MV125-A2-1S-125-34-B1-TBB-000
R986V00319 MV125-A2-1S-125-33-B2-TBB-000
R986V00321 MV125-A2-1S-125-37-00-0BB-000
R986V00324 MV125-A2-1S-125-31-B1-PBB-000
R986V00325 MV125-A2-1S-125-31-B1-TBB-000
R986V00329 MV125-A2-1S-125-35-B2-TBB-000
R986V00331 MV125-A2-1S-150-34-B1-TBB-000
R986V00336 MV125-A2-1S-164-30-B1-TBB-000
R986V00337 MV125-A2-1S-164-31-B1-TBB-000
R986V00338 MV125-A2-1S-196-34-B1-TBB-000
R986V00339 MV125-A2-1S-196-30-B1-PBB-000
R986V00340 MV125-A2-1S-196-31-B1-TBB-000
R986V00341 MV125-A2-1S-196-31-B1-PBB-000
R986V00343 MV125-A2-1S-250-34-B1-TBB-000
R986V00344 MV125-A2-1S-250-33-B2-PBB-0FF
R986V00345 MV125-A2-1S-250-30-B1-TBB-000
R986V00346 MV125-A2-1S-250-30-B1-TBB-011
R986V00347 MV125-A2-1S-250-42-B1-TBB-063
R986V00348 MV125-A2-1S-250-31-B1-TBB-000
R986V00349 MV125-A2-1S-250-31-B0-TBB-161
R986V00370 MV125-A2-1S-060-35-B2-TBB-000
R986V00373 MV125-A2-1S-082-33-B2-TBB-000
R986V00374 MV125-A2-1S-082-31-B1-PBB-000
R986V00375 MV125-A2-1S-098-33-B2-TBB-000
R986V00377 MV125-A2-1S-098-31-B1-TBB-000
R986V00395 MV125-A2-5H-082-30-B1-TBB-000
R986V00398 MV125-A2-1S-113-30-T1-TBB-000
R986V00400 MV125-A2-1S-113-31-B1-PBB-056
R986V00401 MV125-A2-1S-113-35-B2-TBB-000
R986V00402 MV125-A2-1S-113-36-B2-TBB-000
R986V00412 MV125-A2-1S-125-30-B1-TBB-000
R986V00414 MV125-A2-1S-125-30-B1-TBB-0RR
R986V00418 MV125-A2-1S-150-30-B1-TBB-000
R986V00422 MV125-A2-1S-164-33-B2-TBB-000
R986V00424 MV125-A2-1S-180-30-B1-TVV-000
R986V00425 MV125-A2-1S-180-31-B1-TBB-000
R986V00426 MV125-A2-1S-193-31-B1-TBB-000
R986V00427 MV125-A2-1S-195-30-B1-PBB-000
R986V00428 MV125-A2-1S-196-34-B1-PVV-000
R986V00444 MV125-A2-1S-250-33-B2-TBB-000
R986V00500 MV125-A2-1S-060-30-B1-EBB-193
R986V00502 MV125-A2-1S-068-30-B1-TBB-000
R986V00503 MV125-A2-1S-068-35-B2-TBB-000
R986V00504 MV125-A2-1S-068-36-B2-TBB-000
R986V00506 MV125-A2-1S-082-30-B1-TBB-000
R986V00509 MV125-A2-1S-082-35-B2-TBB-000
R986V00510 MV125-A2-1S-098-35-B2-TBB-000
R986V00511 MV125-A2-1S-098-34-T1-TBB-000
R986V00513 MV125-A2-1S-098-30-B1-TBB-000
R986V00528 MV125-A2-1L-250-33-B2-TBB-000
R986V00542 MV125-A2-1L-060-35-B2-TBB-000
R986V00545 MV125-A4-1H-128-31-B1-TBB-213
R986V00546 MV125-A4-1H-136-31-B1-TBB-213
R986V00548 MV125-A4-1H-250-31-B1-TBB-000
R986V00549 MV125-A4-1H-250-31-B1-TBB-213
R986V00556 MV125-A4-1S-250-31-B1-TBB-000
R986V00559 MV125-A4-1S-250-53-T0-PBB-191
R986V00590 MV125-C2-1S-125-30-B1-TBB-000
R986V00591 MV125-C2-1S-196-30-B1-PBB-000
R986V00592 MV125-C2-1S-196-30-B1-TBB-000
R986V00594 MV125-C2-1S-250-34-B1-PVV-000
R986V00595 MV125-C2-1S-250-30-B1-TBB-000
R986V00604 MV125-C2-1S-068-36-B2-TBB-000
R986V00605 MV125-C2-1S-082-36-B2-TBB-000
R986V00606 MV125-C2-1S-113-37-00-0BB-000
R986V00607 MV125-C2-1S-113-35-B2-TBB-000
R986V00612 MV125-C2-1L-082-35-B2-TBB-000
R986V00613 MV125-C2-1S-125-35-B2-TBB-000
R986V00620 MV125-C2-1S-250-30-B1-TVV-000
R986V00644 MV125-C2-1S-060-35-B2-TBB-000
R986V00645 MV125-C2-1S-082-30-B1-TBB-000
R986V00765 MV125-H2-2H-125-31-B1-EVD-214
R986V00766 MV125-H2-2H-196-31-B1-EVD-214
R986V00769 MV125-H2-2L-180-31-T1-TVD-000
R986V00773 MV125-H2-2S-098-53-T1-DVD-164
R986V00774 MV125-H2-2S-113-30-T1-TVD-000
R986V00775 MV125-H2-2S-113-31-T1-TVD-000
R986V00777 MV125-H2-2S-125-53-T1-DVD-164
R986V00780 MV125-H2-2S-125-53-T3-TVD-000
R986V00781 MV125-H2-2S-125-30-T1-TVD-000
R986V00783 MV125-H2-2S-125-31-T1-TVD-000
R986V00785 MV125-H2-2S-196-31-T1-TVD-000
R986V00786 MV125-H2-2S-226-31-T1-TVD-000
R986V00787 MV125-H2-2S-250-53-T1-DVD-164
R986V00790 MV125-H2-2S-250-31-T1-TVD-000
R986V00791 MV125-H2-2S-060-30-T1-TVD-000
R986V00792 MV125-H2-2S-068-31-T1-TVD-000
R986V00793 MV125-H2-2S-082-31-T1-TVD-000
R986V00795 MV125-H2-2S-098-31-T1-TVD-000
R986V00799 MV125-H4-2H-164-31-T1-DVD-000
R986V00803 MV125-H4-2H-250-31-T1-TVD-000
R986V00814 MV125-H4-2S-196-53-T3-TVD-000
R986V00821 MV125-H4-2S-250-31-T1-TVD-000
R986V03268 MV125-H2-2S-125-36-T4-TVD-000
R986V03270 MV125-H2-2S-125-33-B2-TVD-040
R986V03634 MV125-C2-1S-082-35-B2-TBB-000
R986V03640 MV125-H4-2S-120-53-T3-TVD-000
R986V03674 MV125-H4-2H-196-31-B1-EVD-183
R986V04022 MV125-H4-2T-250-31-B1-EVD-212
R986V04154 MV125-A2-1L-098-31-B1-TBB-000
R986V04167 MV125-A2-1H-125-31-B1-TBB-000
R986V04169 MV125-A2-1H-125-31-B1-TBB-160
R986V04173 MV125-A4-1S-120-30-B1-TBB-000
R986V04247 MV125-H2-2S-082-36-T4-TVD-226
R986V04270 MV125-A2-1S-226-35-B2-TBB-000
R986V04331 MV125-C2-1S-060-30-B1-TBB-000
R986V04386 MV125-H2-2S-113-53-T1-DVD-164
R986V04400 MV125-H4-2S-196-31-B1-EVD-212
R986V04405 MV125-A2-1S-226-31-B1-TBB-000
R986V04406 MV125-H4-2S-250-53-T3-TVD-000
R986V04419 MV125-H4-2S-196-31-T1-TVD-000
R986V04427 MV125-A2-1S-250-40-B1-PVV-0FF
R986V04440 MV125-C2-1S-113-36-B2-TBB-000
R986V04472 MV125-F4-2S-164-00-00-0VD-211
R986V04477 MV125-H2-2L-211-30-T1-TVD-000
R986V04494 MV125-H2-2S-098-53-T3-TVD-000
R986V04535 MV125-A2-1S-060-30-T1-TBB-227
R986V04538 MV125-H4-2S-164-53-T3-TVD-000
R986V04539 MV125-H4-2H-164-31-T1-TVD-000
R986V04546 MV125-A2-1S-250-36-B2-TBB-000
R986V04560 MV125-A2-1S-226-37-00-0BB-182
R986V04585 MV125-H2-2T-125-31-T1-TVD-000
R986V04586 MV125-H4-2T-226-31-T1-TVD-000
R986V04587 MV125-A2-1S-082-34-B1-TBB-0FF
R986V04598 MV125-H2-2S-098-36-T4-TVD-000
R986V04714 MV125-A4-1H-164-31-B1-TBB-213
R986V04716 MV125-A2-1S-180-34-B1-PVV-000
This series provides two pressure grades: standard Code 61 (A-version) rated for 207 bar continuous duty and high-performance Code 62 (H-version) for 310 bar continuous pressure. Displacement ranges from 983 cc to 4097 cc/rev. Configurations include 2-port single rotary-group, 2-port double-stack and 4-port double-rotary-group units. 4-port units support 2-speed or 3-speed operation with external valving. Equal-displacement rotary groups work with series-parallel circuits; mixed-displacement combinations require additional logic circuit. It uses heavy-duty special large-size flange for heavy-equipment retrofit.
Rexroth Rineer Vane Motor MV125 Key Features
Extreme Continuous Torque Output: This Rexroth Rineer MV125 hydraulic vane motor generates exceptionally high torque at low-medium speed, built for the most demanding heavy-duty hydraulic drive systems.
Dual-Grade Pressure Platform: Select Code 61 for general heavy-duty circuits or Code 62 for 310 bar high-pressure hydraulic systems to match different system working pressures.
Multi-Speed Capability for 4-Port Models: 4-port double rotary-group vane motor enables 2-speed / 3-speed operation via external valving; mixed-displacement combinations need additional logic circuit.
Reliable Start and Stall Torque: Achieves up to 92 % of theoretical torque at zero rpm, performs steadily under full-load startup and frequent forward-reverse operating cycles.
Hydraulically-Balanced Robust Construction: Internally balanced rotating assembly reduces self-induced bearing loads, resists contamination and shock loads for long service life in harsh mining and oil-field environments.
Broad Shaft and Bearing Customization: Multiple heavy-load bearing selections accommodate large radial and thrust loads; optional API hollow drill shaft, double-end output shaft for heavy-duty direct-drive equipment.
Dual-Grade Pressure Platform: Select Code 61 for general heavy-duty circuits or Code 62 for 310 bar high-pressure hydraulic systems to match different system working pressures.
Multi-Speed Capability for 4-Port Models: 4-port double rotary-group vane motor enables 2-speed / 3-speed operation via external valving; mixed-displacement combinations need additional logic circuit.
Reliable Start and Stall Torque: Achieves up to 92 % of theoretical torque at zero rpm, performs steadily under full-load startup and frequent forward-reverse operating cycles.
Hydraulically-Balanced Robust Construction: Internally balanced rotating assembly reduces self-induced bearing loads, resists contamination and shock loads for long service life in harsh mining and oil-field environments.
Broad Shaft and Bearing Customization: Multiple heavy-load bearing selections accommodate large radial and thrust loads; optional API hollow drill shaft, double-end output shaft for heavy-duty direct-drive equipment.
Rexroth Rineer Vane Motor MV125 Key Specifications
Motor Type: High torque vane motor with vane-crossing-vane design
Displacement Range: 983 - 4097 cc/rev (60 - 250 in³/rev)
Maximum Continuous Pressure: 207 bar (3000 psi, Code 61); 310 bar (4500 psi, Code 62)
Maximum Continuous Speed: 350 rpm
Maximum Power Output: 788 HP (588 kW)
Mounting Options: 1-1/2" 4-bolt flange, 1-1/4" 4-bolt flange, SAE 24 O-ring boss flange
Hydraulic Fluid: Mineral HL/HLP oil; special fluids available on request
Standard Seals: NBR for Code 61 (FKM optional); Code 62 requires FKM main-body O-rings and Disogrin pedestal O-rings. Multiple shaft seal types are available as options.
Origin: Made in USA (Bosch Rexroth Rineer)
Displacement Range: 983 - 4097 cc/rev (60 - 250 in³/rev)
Maximum Continuous Pressure: 207 bar (3000 psi, Code 61); 310 bar (4500 psi, Code 62)
Maximum Continuous Speed: 350 rpm
Maximum Power Output: 788 HP (588 kW)
Mounting Options: 1-1/2" 4-bolt flange, 1-1/4" 4-bolt flange, SAE 24 O-ring boss flange
Hydraulic Fluid: Mineral HL/HLP oil; special fluids available on request
Standard Seals: NBR for Code 61 (FKM optional); Code 62 requires FKM main-body O-rings and Disogrin pedestal O-rings. Multiple shaft seal types are available as options.
Origin: Made in USA (Bosch Rexroth Rineer)
Rexroth Rineer Vane Motor MV125 Weight (approx.)
| Motor Type | Weight (lbs) | Weight (kg) |
| Code 61, 2-port | 228 | 104 |
| Code 61, 4-port | 366 | 166 |
| Code 62, 2-port | 287 | 130 |
| Code 62, 4-port | 372 | 169 |
Approximate base-model weights. Shaft variants, double-stack and SAE 24 options change weight. Refer to datasheet for full weight data.
Rexroth Rineer Vane Motor MV125 Applications
This Rexroth Rineer MV125 high torque vane motor serves ultra-high-load hydraulic systems across multiple industries:
Oilfield Equipment: Big-bore power tongs, casing handling tools, mud agitators and auxiliary top drives. API hollow drill shaft and high-thrust bearing options suit harsh upstream field conditions.
Winches & Hoists: Industrial and offshore deck winches, suited for extreme pulling loads and dynamic-braking cycles.
Mining & Heavy Construction: Oversized auger drives, robust drill power heads and high-capacity feeder mixers for rugged mine jobsites.
Industrial Processing Machinery: Large rotary indexing tables, bulk-material processing drives and high-power pump drives requiring low-ripple smooth rotation.
Marine & Bulk Material Handling: Deck machinery, heavy-duty screw and belt conveyors for high-volume mineral-processing plants.
Note: External radial / axial shaft loads must comply with selected bearing rating to avoid shortened service life.
Commonly Requested Material Numbers (MNR)
Below are Rexroth Rineer MV125 Vane Motor material numbers and models. If the MNR or model you require is not listed, please contact us freely.
MNR Model
R986V00276 MV125-A2-1H-113-31-B1-TBB-160
R986V00277 MV125-A2-1H-113-31-B1-TBB-000
R986V00280 MV125-A2-1H-082-31-B1-TBB-000
R986V00281 MV125-A2-1H-098-30-B1-TBB-000
R986V00282 MV125-A2-1H-098-31-B1-TBB-160
R986V00283 MV125-A2-1H-098-31-B1-TBB-000
R986V00286 MV125-A2-1L-082-35-B2-TBB-000
R986V00287 MV125-A2-1L-060-30-B1-TBB-000
R986V00288 MV125-A2-1L-098-30-B1-TBB-000
R986V00289 MV125-A2-1L-098-30-B1-PVV-000
R986V00290 MV125-A2-1L-098-35-B2-TBB-000
R986V00292 MV125-A2-1L-125-35-B2-TBB-000
R986V00296 MV125-A2-1L-211-31-B1-TBB-000
R986V00297 MV125-A2-1L-250-30-B1-TBB-000
R986V00304 MV125-A2-1S-060-31-B1-TBB-000
R986V00306 MV125-A2-1S-113-34-B1-TBB-000
R986V00307 MV125-A2-1S-113-30-B1-TBB-000
R986V00309 MV125-A2-1S-113-31-B1-TBB-160
R986V00310 MV125-A2-1S-113-31-B1-TBB-000
R986V00311 MV125-A2-1S-113-35-B2-PVV-000
R986V00312 MV125-A2-1S-113-53-T1-DBB-157
R986V00316 MV125-A2-1S-125-34-B1-TBB-000
R986V00319 MV125-A2-1S-125-33-B2-TBB-000
R986V00321 MV125-A2-1S-125-37-00-0BB-000
R986V00324 MV125-A2-1S-125-31-B1-PBB-000
R986V00325 MV125-A2-1S-125-31-B1-TBB-000
R986V00329 MV125-A2-1S-125-35-B2-TBB-000
R986V00331 MV125-A2-1S-150-34-B1-TBB-000
R986V00336 MV125-A2-1S-164-30-B1-TBB-000
R986V00337 MV125-A2-1S-164-31-B1-TBB-000
R986V00338 MV125-A2-1S-196-34-B1-TBB-000
R986V00339 MV125-A2-1S-196-30-B1-PBB-000
R986V00340 MV125-A2-1S-196-31-B1-TBB-000
R986V00341 MV125-A2-1S-196-31-B1-PBB-000
R986V00343 MV125-A2-1S-250-34-B1-TBB-000
R986V00344 MV125-A2-1S-250-33-B2-PBB-0FF
R986V00345 MV125-A2-1S-250-30-B1-TBB-000
R986V00346 MV125-A2-1S-250-30-B1-TBB-011
R986V00347 MV125-A2-1S-250-42-B1-TBB-063
R986V00348 MV125-A2-1S-250-31-B1-TBB-000
R986V00349 MV125-A2-1S-250-31-B0-TBB-161
R986V00370 MV125-A2-1S-060-35-B2-TBB-000
R986V00373 MV125-A2-1S-082-33-B2-TBB-000
R986V00374 MV125-A2-1S-082-31-B1-PBB-000
R986V00375 MV125-A2-1S-098-33-B2-TBB-000
R986V00377 MV125-A2-1S-098-31-B1-TBB-000
R986V00395 MV125-A2-5H-082-30-B1-TBB-000
R986V00398 MV125-A2-1S-113-30-T1-TBB-000
R986V00400 MV125-A2-1S-113-31-B1-PBB-056
R986V00401 MV125-A2-1S-113-35-B2-TBB-000
R986V00402 MV125-A2-1S-113-36-B2-TBB-000
R986V00412 MV125-A2-1S-125-30-B1-TBB-000
R986V00414 MV125-A2-1S-125-30-B1-TBB-0RR
R986V00418 MV125-A2-1S-150-30-B1-TBB-000
R986V00422 MV125-A2-1S-164-33-B2-TBB-000
R986V00424 MV125-A2-1S-180-30-B1-TVV-000
R986V00425 MV125-A2-1S-180-31-B1-TBB-000
R986V00426 MV125-A2-1S-193-31-B1-TBB-000
R986V00427 MV125-A2-1S-195-30-B1-PBB-000
R986V00428 MV125-A2-1S-196-34-B1-PVV-000
R986V00444 MV125-A2-1S-250-33-B2-TBB-000
R986V00500 MV125-A2-1S-060-30-B1-EBB-193
R986V00502 MV125-A2-1S-068-30-B1-TBB-000
R986V00503 MV125-A2-1S-068-35-B2-TBB-000
R986V00504 MV125-A2-1S-068-36-B2-TBB-000
R986V00506 MV125-A2-1S-082-30-B1-TBB-000
R986V00509 MV125-A2-1S-082-35-B2-TBB-000
R986V00510 MV125-A2-1S-098-35-B2-TBB-000
R986V00511 MV125-A2-1S-098-34-T1-TBB-000
R986V00513 MV125-A2-1S-098-30-B1-TBB-000
R986V00528 MV125-A2-1L-250-33-B2-TBB-000
R986V00542 MV125-A2-1L-060-35-B2-TBB-000
R986V00545 MV125-A4-1H-128-31-B1-TBB-213
R986V00546 MV125-A4-1H-136-31-B1-TBB-213
R986V00548 MV125-A4-1H-250-31-B1-TBB-000
R986V00549 MV125-A4-1H-250-31-B1-TBB-213
R986V00556 MV125-A4-1S-250-31-B1-TBB-000
R986V00559 MV125-A4-1S-250-53-T0-PBB-191
R986V00590 MV125-C2-1S-125-30-B1-TBB-000
R986V00591 MV125-C2-1S-196-30-B1-PBB-000
R986V00592 MV125-C2-1S-196-30-B1-TBB-000
R986V00594 MV125-C2-1S-250-34-B1-PVV-000
R986V00595 MV125-C2-1S-250-30-B1-TBB-000
R986V00604 MV125-C2-1S-068-36-B2-TBB-000
R986V00605 MV125-C2-1S-082-36-B2-TBB-000
R986V00606 MV125-C2-1S-113-37-00-0BB-000
R986V00607 MV125-C2-1S-113-35-B2-TBB-000
R986V00612 MV125-C2-1L-082-35-B2-TBB-000
R986V00613 MV125-C2-1S-125-35-B2-TBB-000
R986V00620 MV125-C2-1S-250-30-B1-TVV-000
R986V00644 MV125-C2-1S-060-35-B2-TBB-000
R986V00645 MV125-C2-1S-082-30-B1-TBB-000
R986V00765 MV125-H2-2H-125-31-B1-EVD-214
R986V00766 MV125-H2-2H-196-31-B1-EVD-214
R986V00769 MV125-H2-2L-180-31-T1-TVD-000
R986V00773 MV125-H2-2S-098-53-T1-DVD-164
R986V00774 MV125-H2-2S-113-30-T1-TVD-000
R986V00775 MV125-H2-2S-113-31-T1-TVD-000
R986V00777 MV125-H2-2S-125-53-T1-DVD-164
R986V00780 MV125-H2-2S-125-53-T3-TVD-000
R986V00781 MV125-H2-2S-125-30-T1-TVD-000
R986V00783 MV125-H2-2S-125-31-T1-TVD-000
R986V00785 MV125-H2-2S-196-31-T1-TVD-000
R986V00786 MV125-H2-2S-226-31-T1-TVD-000
R986V00787 MV125-H2-2S-250-53-T1-DVD-164
R986V00790 MV125-H2-2S-250-31-T1-TVD-000
R986V00791 MV125-H2-2S-060-30-T1-TVD-000
R986V00792 MV125-H2-2S-068-31-T1-TVD-000
R986V00793 MV125-H2-2S-082-31-T1-TVD-000
R986V00795 MV125-H2-2S-098-31-T1-TVD-000
R986V00799 MV125-H4-2H-164-31-T1-DVD-000
R986V00803 MV125-H4-2H-250-31-T1-TVD-000
R986V00814 MV125-H4-2S-196-53-T3-TVD-000
R986V00821 MV125-H4-2S-250-31-T1-TVD-000
R986V03268 MV125-H2-2S-125-36-T4-TVD-000
R986V03270 MV125-H2-2S-125-33-B2-TVD-040
R986V03634 MV125-C2-1S-082-35-B2-TBB-000
R986V03640 MV125-H4-2S-120-53-T3-TVD-000
R986V03674 MV125-H4-2H-196-31-B1-EVD-183
R986V04022 MV125-H4-2T-250-31-B1-EVD-212
R986V04154 MV125-A2-1L-098-31-B1-TBB-000
R986V04167 MV125-A2-1H-125-31-B1-TBB-000
R986V04169 MV125-A2-1H-125-31-B1-TBB-160
R986V04173 MV125-A4-1S-120-30-B1-TBB-000
R986V04247 MV125-H2-2S-082-36-T4-TVD-226
R986V04270 MV125-A2-1S-226-35-B2-TBB-000
R986V04331 MV125-C2-1S-060-30-B1-TBB-000
R986V04386 MV125-H2-2S-113-53-T1-DVD-164
R986V04400 MV125-H4-2S-196-31-B1-EVD-212
R986V04405 MV125-A2-1S-226-31-B1-TBB-000
R986V04406 MV125-H4-2S-250-53-T3-TVD-000
R986V04419 MV125-H4-2S-196-31-T1-TVD-000
R986V04427 MV125-A2-1S-250-40-B1-PVV-0FF
R986V04440 MV125-C2-1S-113-36-B2-TBB-000
R986V04472 MV125-F4-2S-164-00-00-0VD-211
R986V04477 MV125-H2-2L-211-30-T1-TVD-000
R986V04494 MV125-H2-2S-098-53-T3-TVD-000
R986V04535 MV125-A2-1S-060-30-T1-TBB-227
R986V04538 MV125-H4-2S-164-53-T3-TVD-000
R986V04539 MV125-H4-2H-164-31-T1-TVD-000
R986V04546 MV125-A2-1S-250-36-B2-TBB-000
R986V04560 MV125-A2-1S-226-37-00-0BB-182
R986V04585 MV125-H2-2T-125-31-T1-TVD-000
R986V04586 MV125-H4-2T-226-31-T1-TVD-000
R986V04587 MV125-A2-1S-082-34-B1-TBB-0FF
R986V04598 MV125-H2-2S-098-36-T4-TVD-000
R986V04714 MV125-A4-1H-164-31-B1-TBB-213
R986V04716 MV125-A2-1S-180-34-B1-PVV-000
Share your thoughts with us today!
Showing
6
of
0
reviews
Most recent
Top Reviews
Read more
Your rating
Your review *
Name *
Enter your Name
Email *
Enter your Email
Upload Image
Notice: Ensure your image is no larger than 200KB before uploading.
Submit
Contact Us Now
Enter your inquiry details, We will reply you in 24 hours.
Name can't be empty
E-mail can't be empty
Company can't be empty
Phone can't be empty
Phone
Products can't be empty
Products you want
Message can't be empty
Verification code error
Clear
People who viewed this item also viewed
